Udopia Doctoral Students Day: Machine learning for astrophysical inverse problems

Gravitational lensing

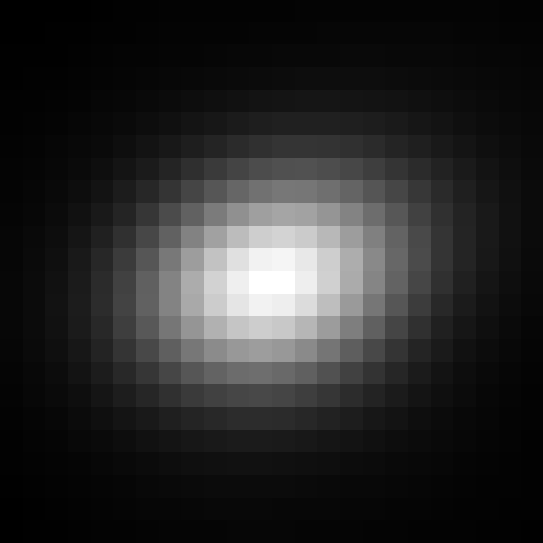

Galaxy shapes as estimators for gravitational shear

$$ e = \gamma + e_i \qquad \mbox{ with } \qquad e_i \sim \mathcal{N}(0, I)$$

• We are trying the measure the ellipticity $e$ of galaxies as an estimator for the gravitational shear $\gamma$

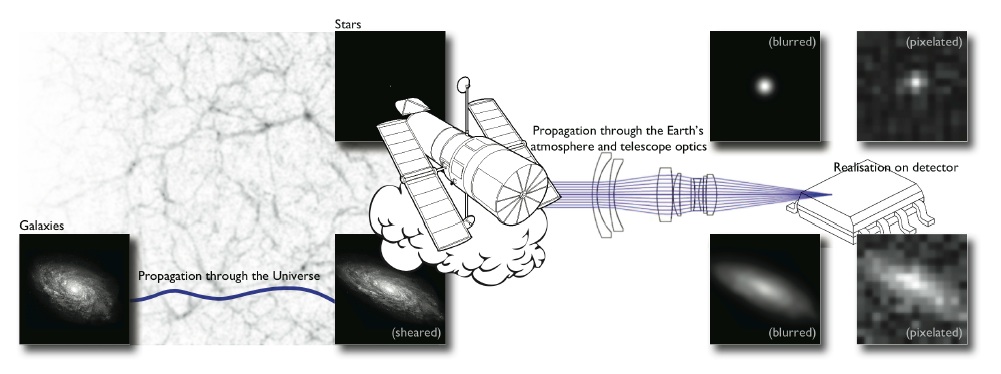

A Physicist's approach: let's build a model

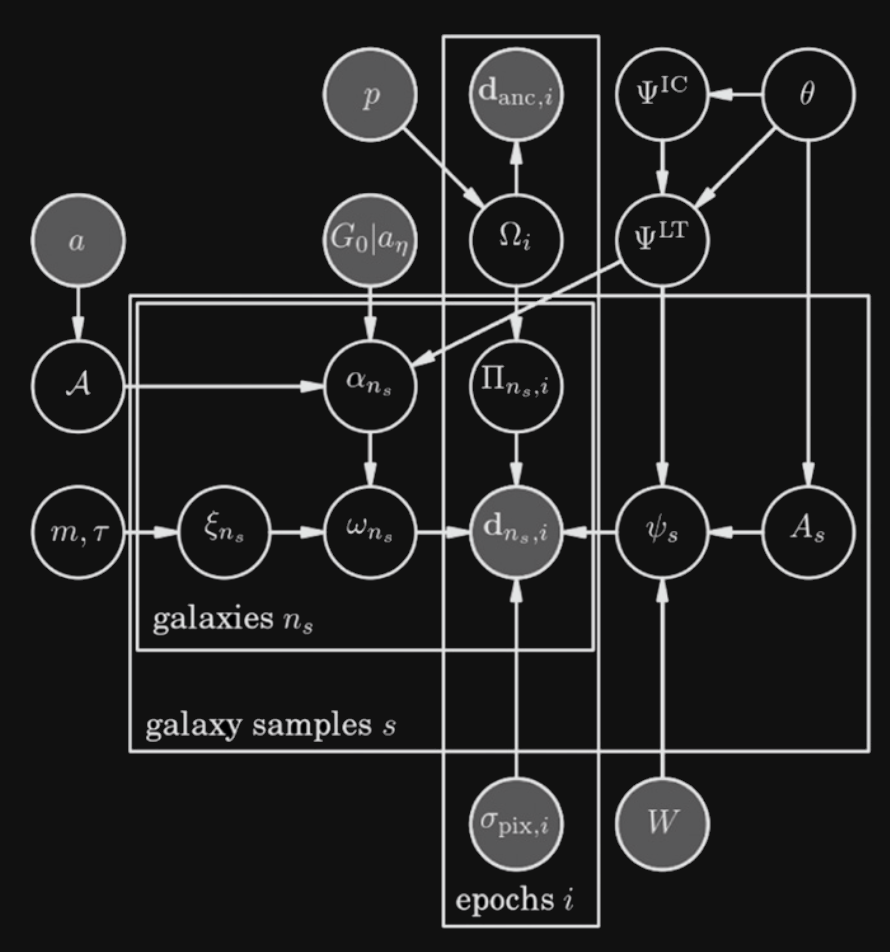

Lanusse et al. (2020)

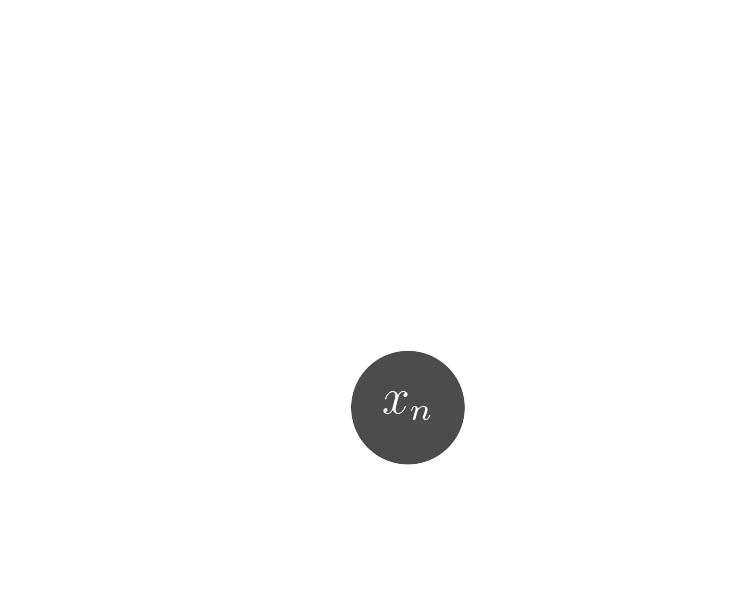

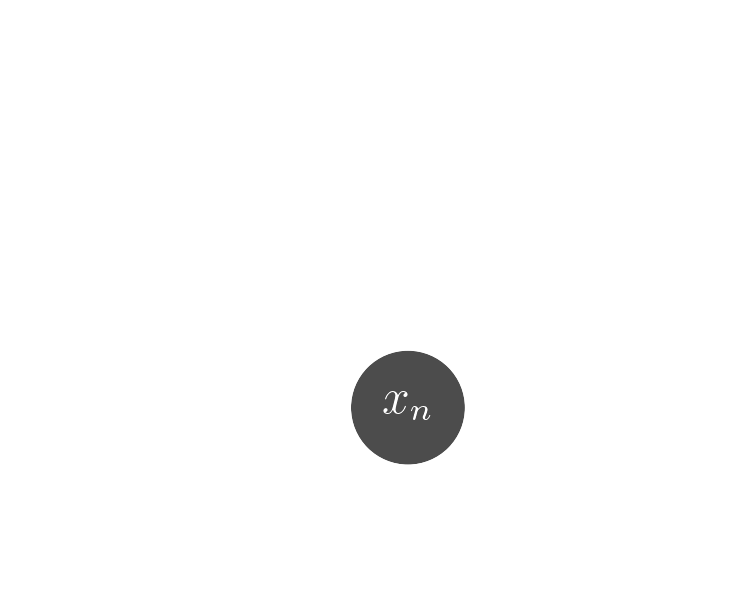

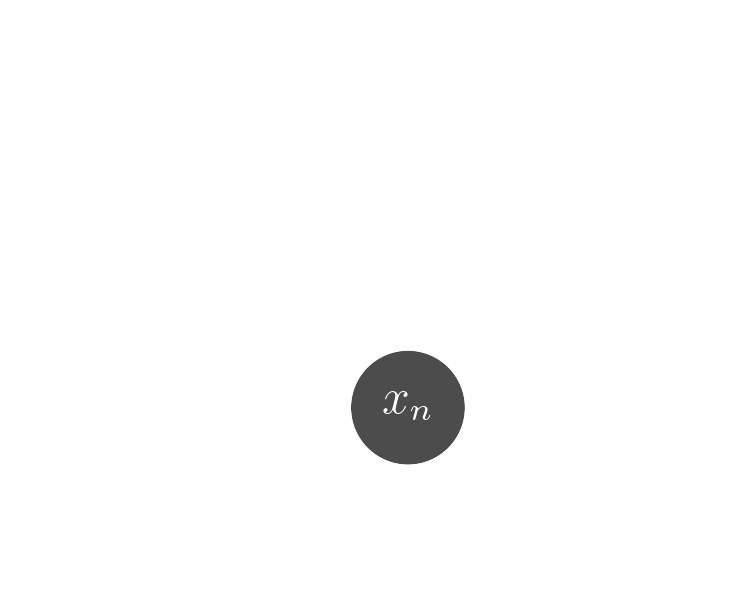

Probabilistic model

$$ x \sim ? $$

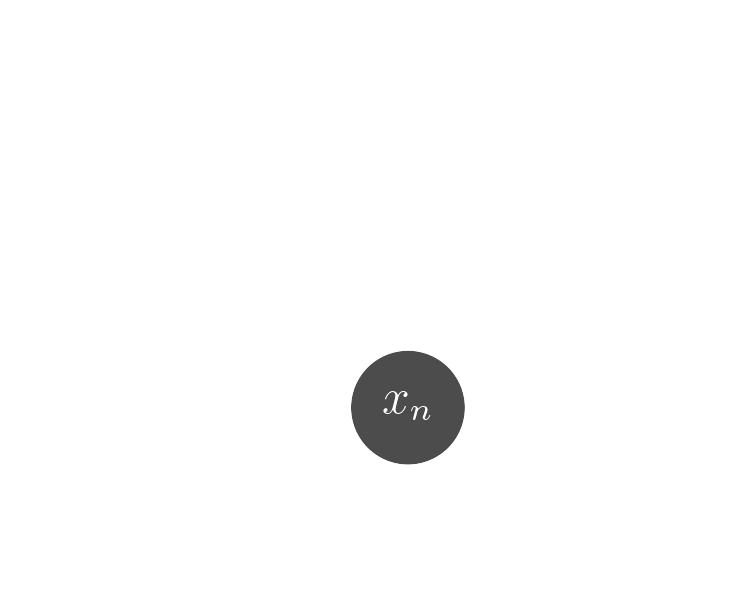

$$ x \sim \mathcal{N}(z, \Sigma) \quad z \sim ? $$
latent $z$ is a denoised galaxy image

$$ x \sim \mathcal{N}( \mathbf{P} z, \Sigma) \quad z \sim ?$$
latent $z$ is a super-resolved and denoised galaxy image

$$ x \sim \mathcal{N}( \mathbf{P} (\Pi \ast z), \Sigma) \quad z \sim ? $$
latent $z$ is a deconvolved, super-resolved, and denoised galaxy image

$$ x \sim \mathcal{N}( \mathbf{P} (\Pi \ast g_\theta(z)), \Sigma) \quad z \sim \mathcal{N}(0, \mathbf{I}) $$
latent $z$ is a Gaussian sample
$\theta$ are parameters of the model

Bayesian Inference a.k.a. Uncertainty Quantification

The Bayesian view of the problem: $$ p(z | x ) \propto p_\theta(x | z, \Sigma, \mathbf{\Pi}) p(z)$$ where:

• $p( z | x )$ is the posterior
• $p( x | z )$ is the data likelihood, contains the physics
• $p( z )$ is the prior

Data
$x_n$

Truth
$x_0$

Posterior samples
$g_\theta(z)$

$\mathbf{P} (\Pi \ast g_\theta(z))$

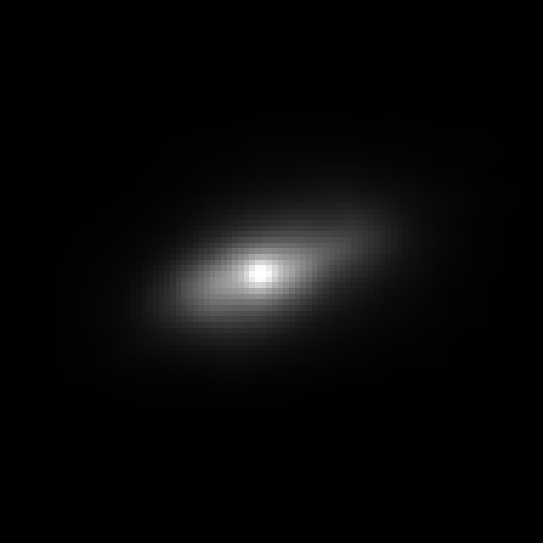

Median

Data residuals
$x_n - \mathbf{P} (\Pi \ast g_\theta(z))$

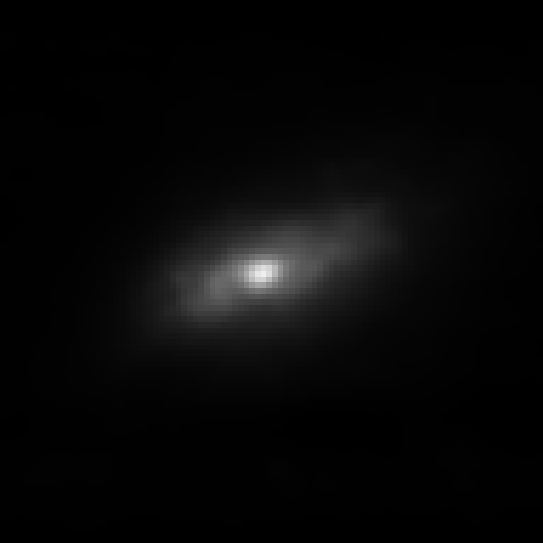

Standard Deviation

The Weak Lensing Mass-Mapping as an Inverse Problem

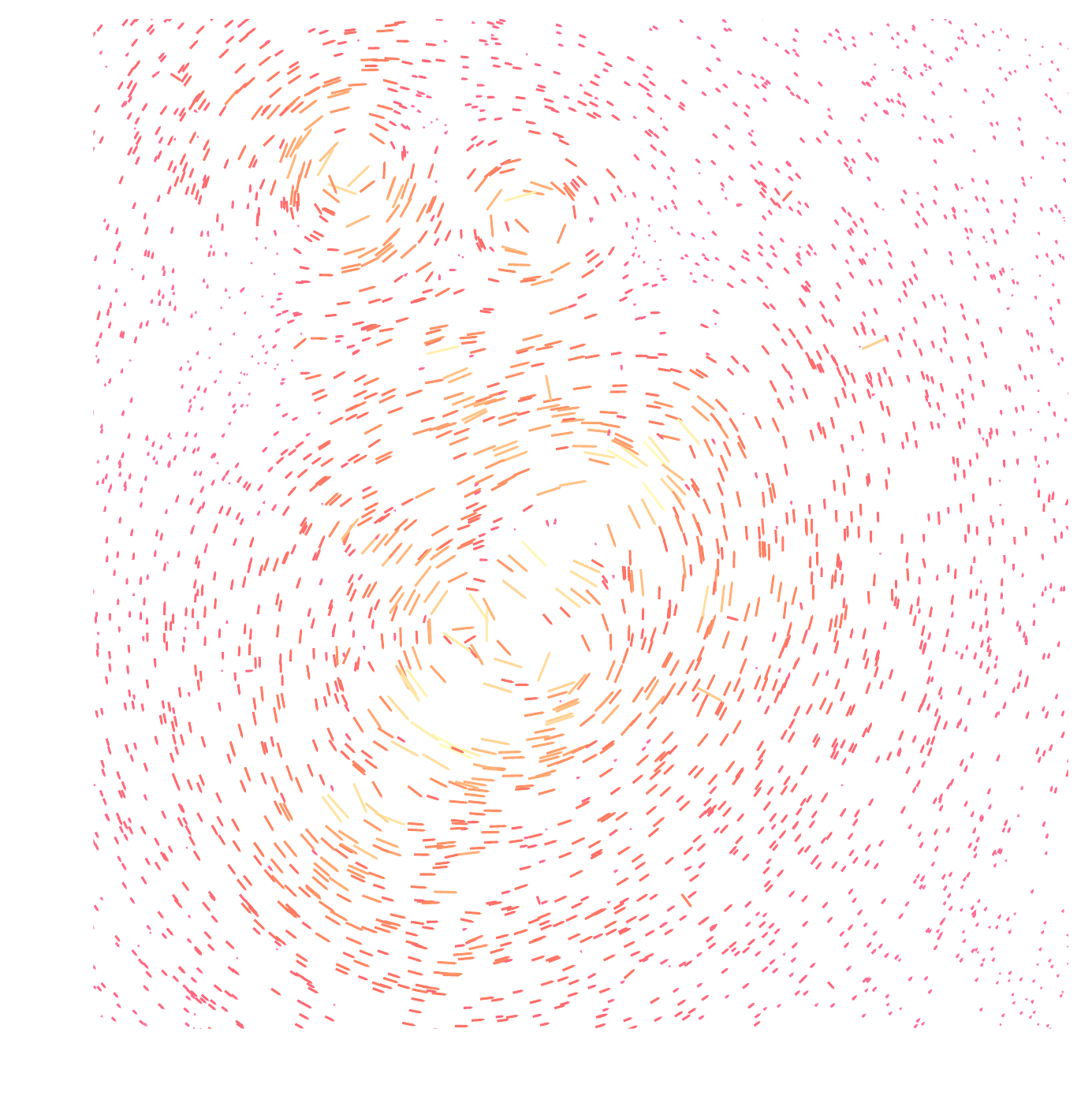

Shear $\gamma$

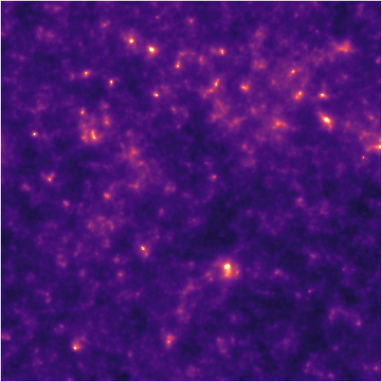

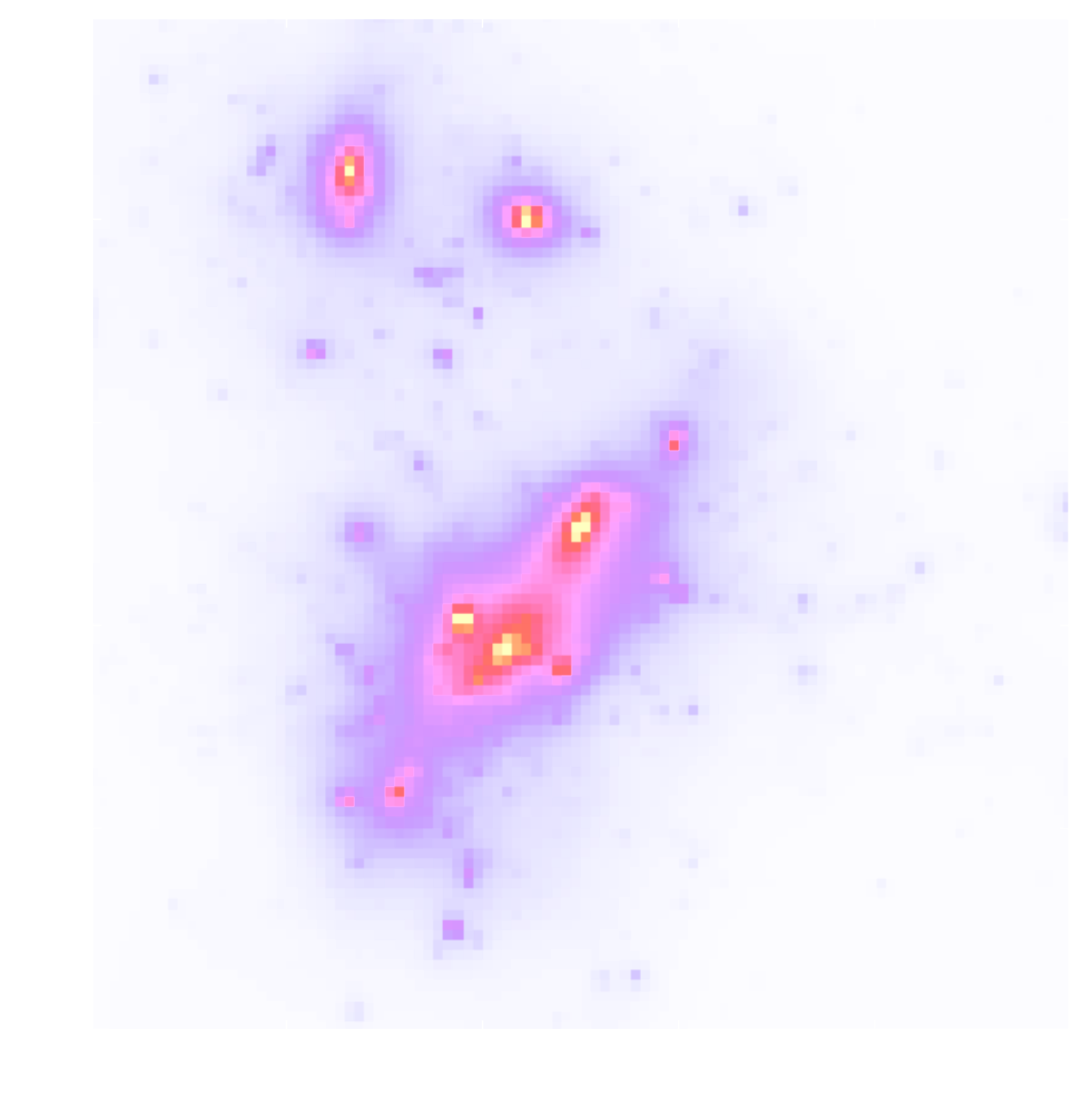

Convergence $\kappa$

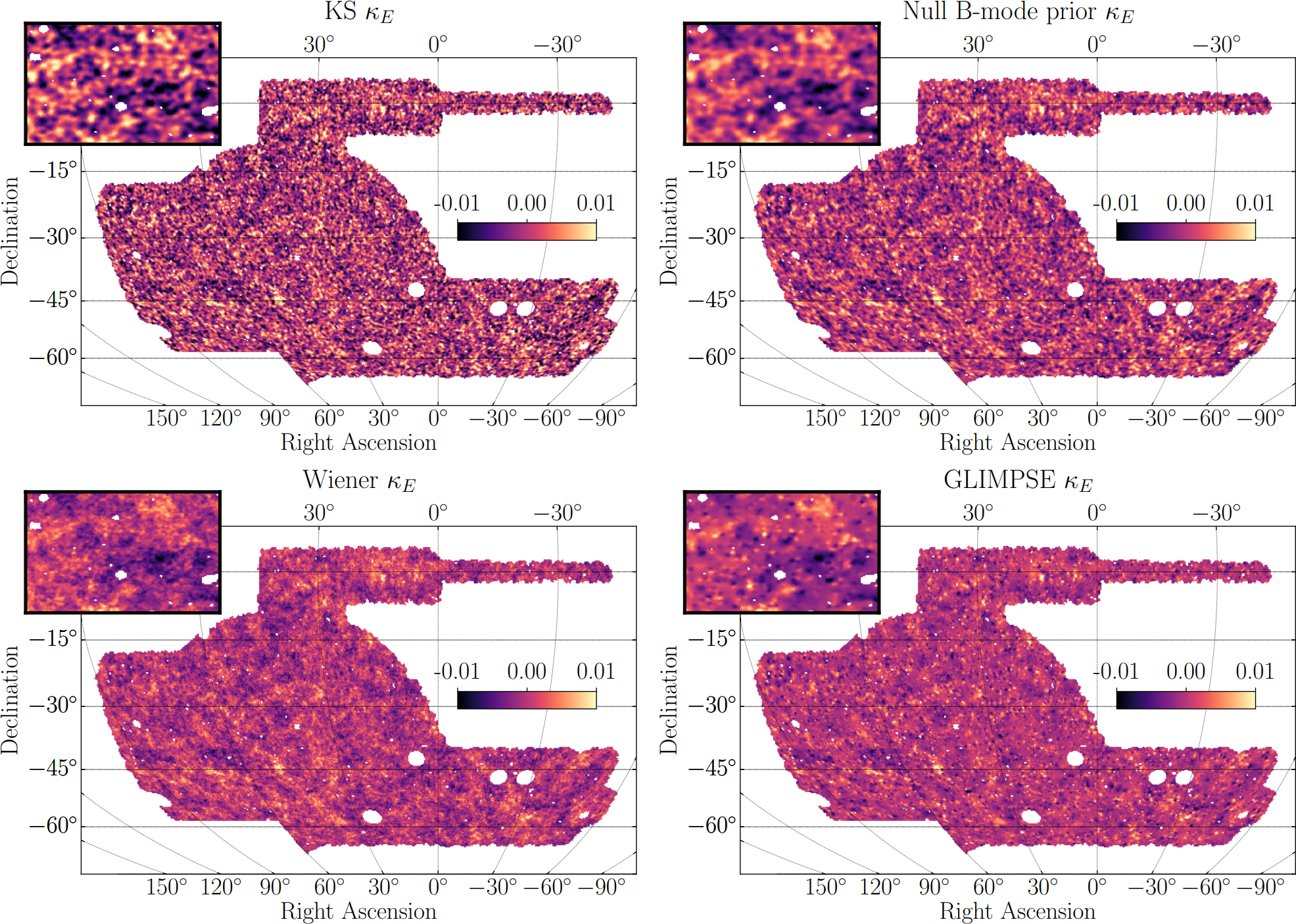

Illustration on the Dark Energy Survey (DES) Y3

Linear inverse problems

• $p(\gamma | \kappa)$ is the data likelihood, which contains the physics



• $p(\kappa)$ is the prior knowledge on the solution.

But what about learning the prior
with deep generative models?

The evolution of generative models

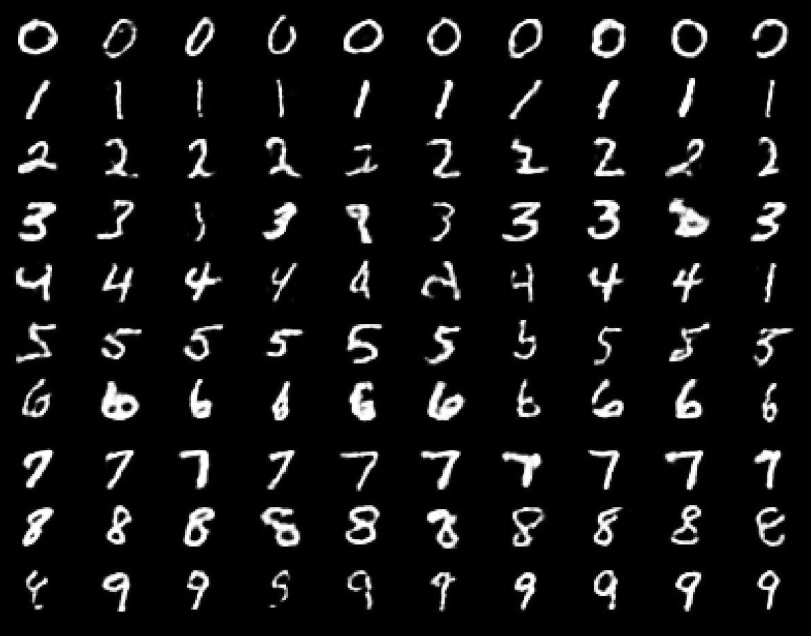

• Deep Belief Network
  (Hinton et al. 2006)


• Variational AutoEncoder
  (Kingma & Welling 2014)


• Generative Adversarial Network
  (Goodfellow et al. 2014)


• Wasserstein GAN
  (Arjovsky et al. 2017)

The score is all you need!

• Whether you are looking for the MAP or sampling with HMC or MALA, you only need access to the score of the posterior: $$\frac{\color{orange} d \color{orange}\log \color{orange}p\color{orange}(\color{orange}x \color{orange}|\color{orange} y\color{orange})}{\color{orange} d \color{orange}x}$$
  • Gradient descent: $x_{t+1} = x_t + \tau \nabla_x \log p(x_t | y) $
  • Langevin algorithm: $x_{t+1} = x_t + \tau \nabla_x \log p(x_t | y) + \sqrt{2\tau} n_t$

• The score of the full posterior is simply: $$\nabla_\kappa \log p(\kappa |\gamma) = \underbrace{\nabla_\kappa \log p(\gamma |\kappa)}_{\mbox{known}} \quad + \quad \underbrace{\nabla_\kappa \log p(\kappa)}_{\mbox{can be learned}}$$ $\Longrightarrow$ all we have to do is model/learn the score of the prior.

Neural Score Estimation by Denoising Score Matching

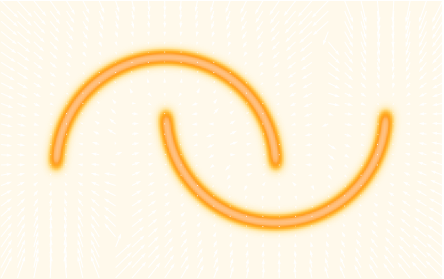

• Denoising Score Matching: An optimal Gaussian denoiser learns the score of a given distribution.
  • If $x \sim \mathbb{P}$ is corrupted by additional Gaussian noise $u \in \mathcal{N}(0, \sigma^2)$ to yield $$x^\prime = x + u$$
  • Let's consider a denoiser $r_\theta$ trained under an $\ell_2$ loss: $$\mathcal{L}=\parallel x - r_\theta(x^\prime, \sigma) \parallel_2^2$$
  • The optimal denoiser $r_{\theta^\star}$ verifies: $$\boxed{\boldsymbol{r}_{\theta^\star}(\boldsymbol{x}', \sigma) = \boldsymbol{x}' + \sigma^2 \color{orange}{\nabla_{\boldsymbol{x}} \log p_{\sigma^2}(\boldsymbol{x}')}}$$

$\Bigg($

$\boldsymbol{x}'$

$-$

$\boldsymbol{r}_{\theta^\star}(\boldsymbol{x}', \sigma)$

$\Bigg)~/~\sigma^2=$

$\color{orange}{\nabla_{\boldsymbol{x}} \log p_{\sigma^2}(\boldsymbol{x}')}$

Efficient sampling by Annealed HMC

• Even with gradients, sampling in high number of dimensions is difficult! Because of:

  • Curse of dimensionality
  • Highly correlated chains
• $\Longrightarrow$ Use a parallel annealing strategy to effectively sample from full distribution.

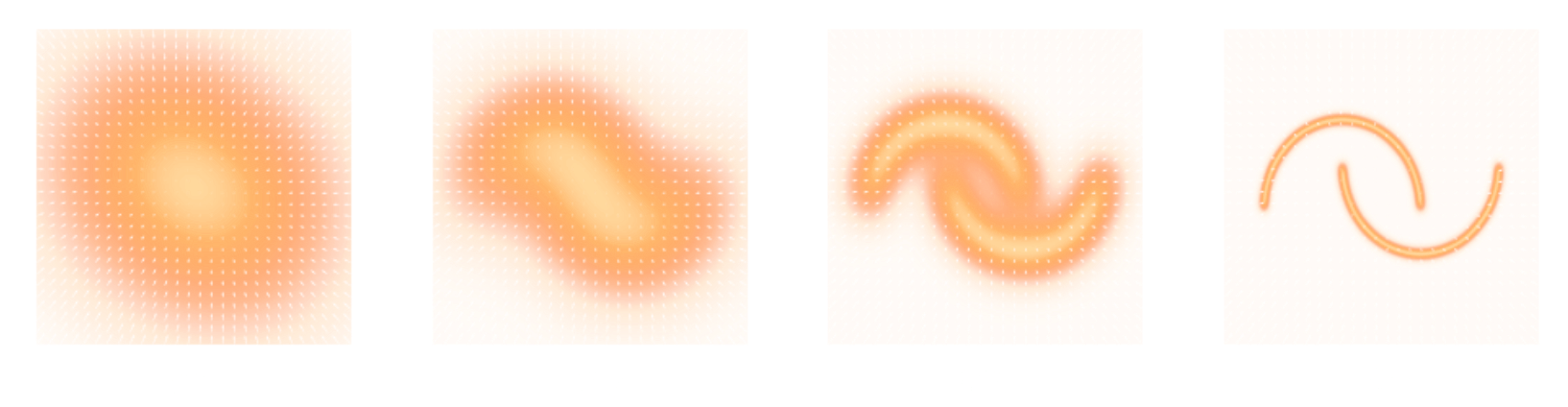

• We use the fact that our score network $\mathbf{r}_\theta(x, \sigma)$ is learning a noise-convolved distribution $\nabla \log p_\sigma$, where $$p_\sigma(x) = \int p_{\mathrm{data}}(x')\mathcal{N}(x|x', \sigma^2)dx', ~~~~~~~~\sigma_1 > \sigma_2 > \sigma_3 > \sigma_4 $$

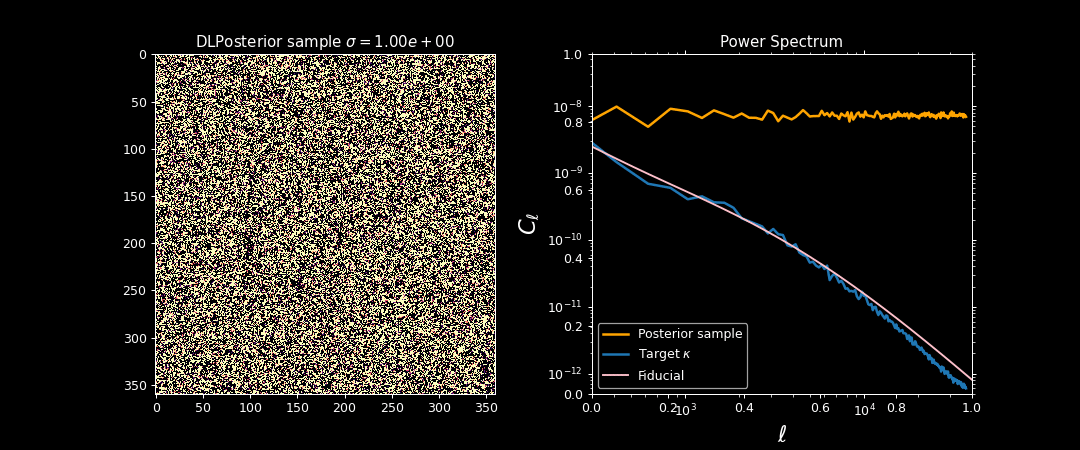

• Run many HMC chains in parallel, progressively annealing the $\sigma$ to 0, keep last point in the chain as independent sample.

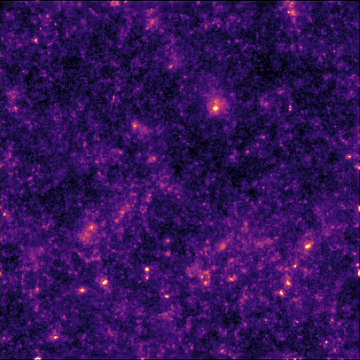

Illustration on $\kappa$-TNG simulations

$$\nabla_\kappa \log p_\sigma(\kappa |\gamma) = \nabla_\kappa \log p_\sigma(\gamma |\kappa) \quad + \quad \color{orange}{\nabla_\kappa \log p_\sigma(\kappa)}$$

Illustration on $\kappa$-TNG simulations

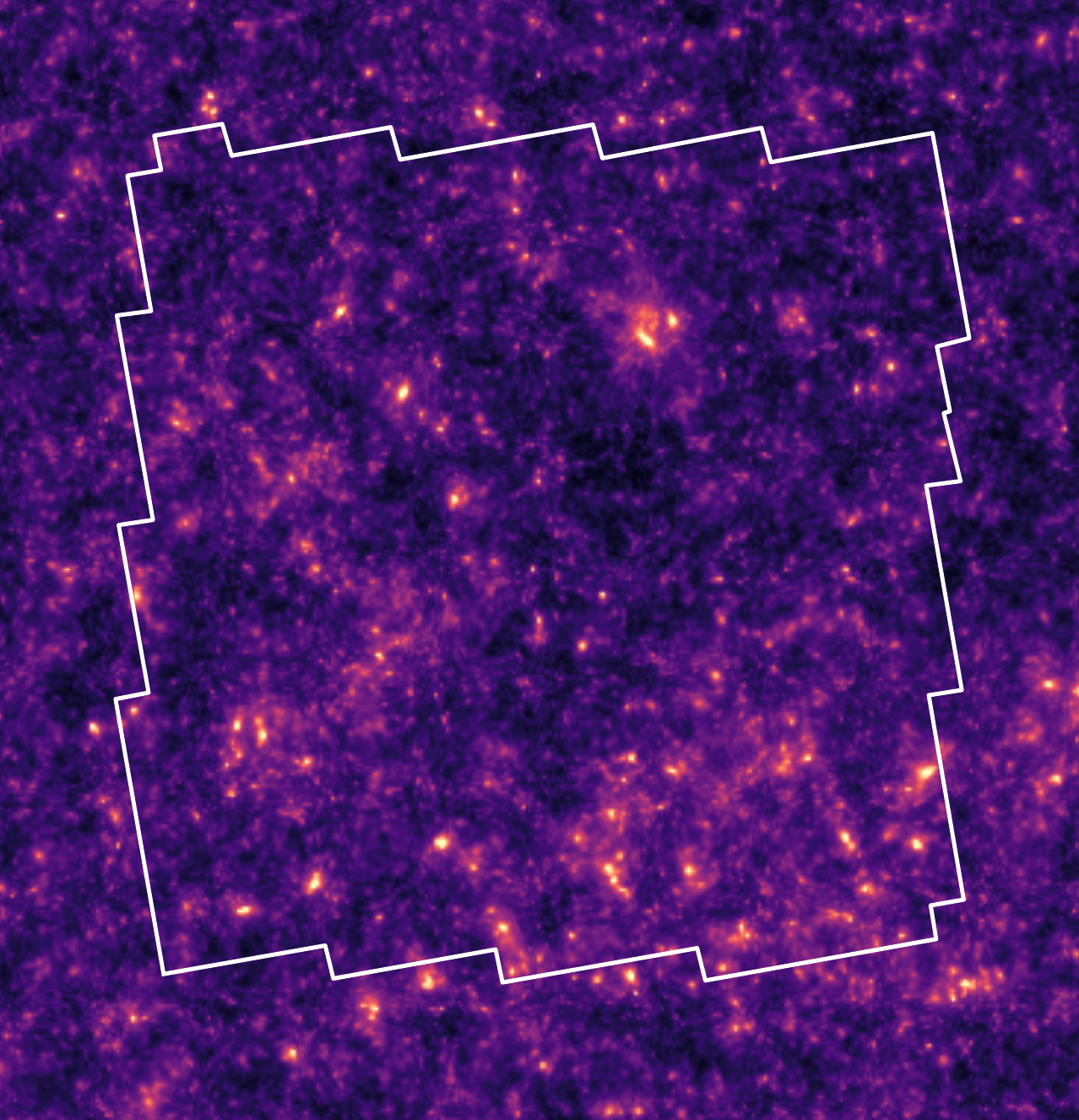

True convergence map

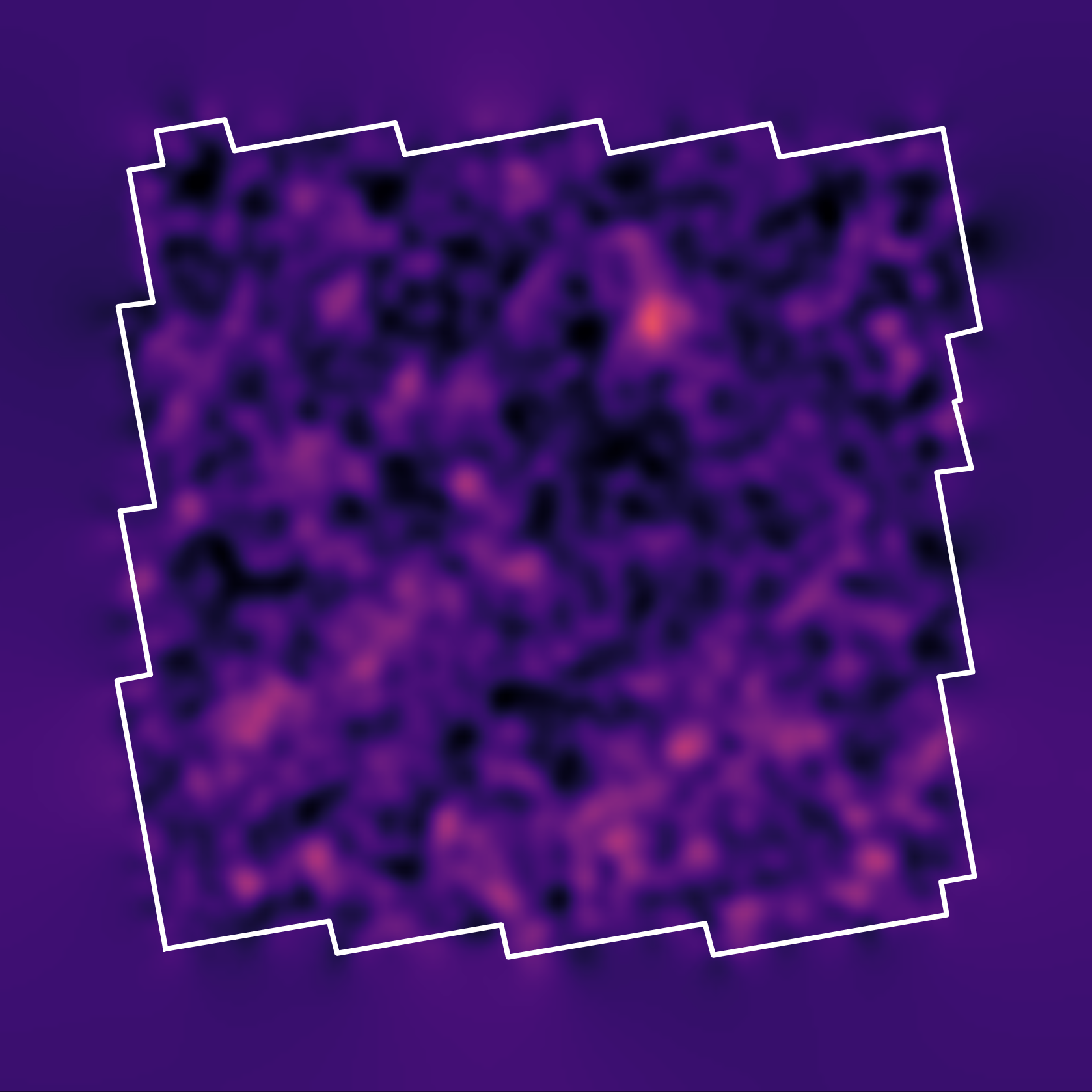

Traditional Kaiser-Squires

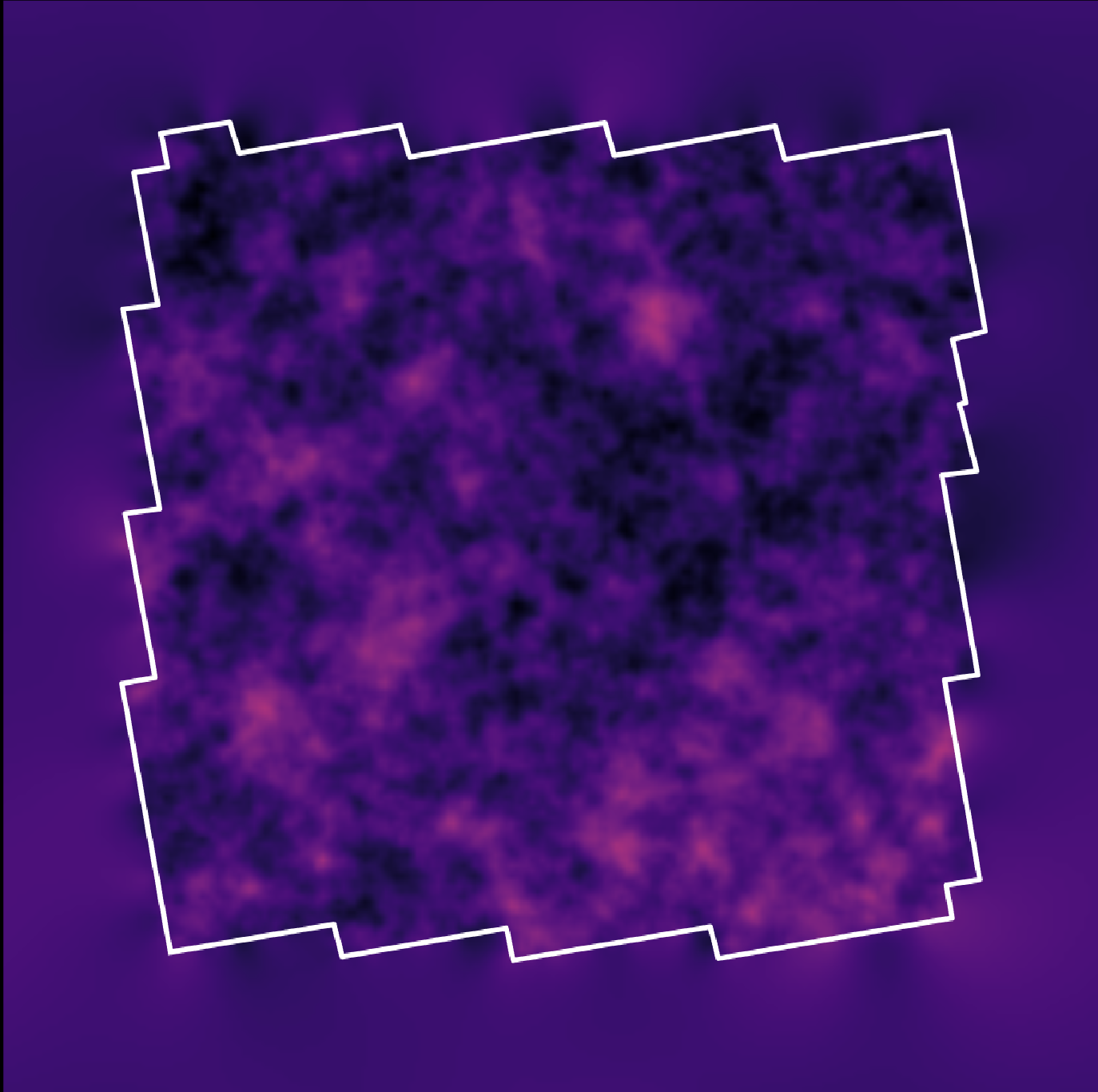

Wiener Filter

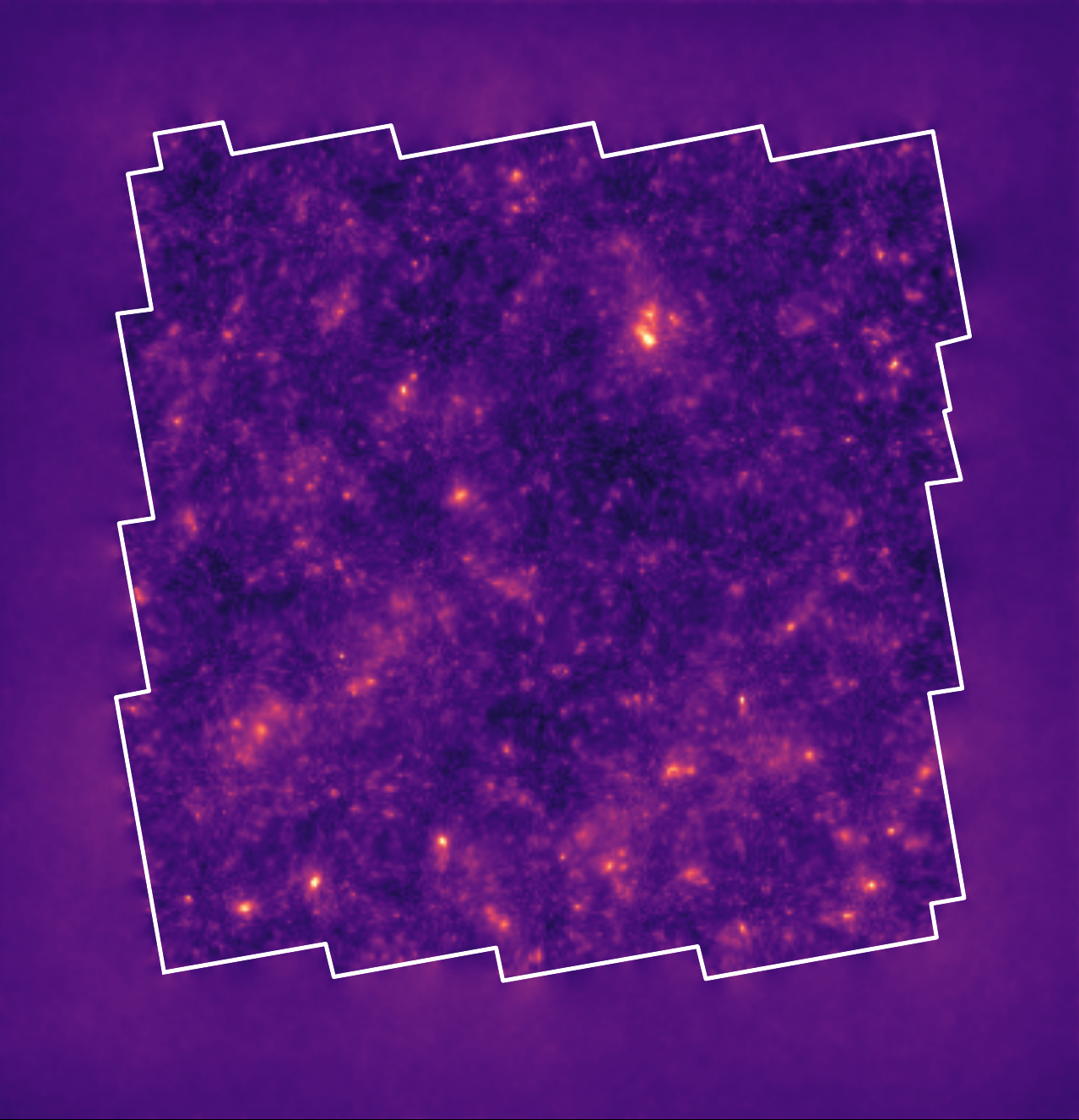

Posterior Mean (ours)

Posterior samples

Uncertainty quantification in Magnetic Resonance Imaging (MRI)

Ramzi, Remy, Lanusse et al. 2020

$\Longrightarrow$ We can see which parts of the image are well constrained by data, and which regions are uncertain.
