Probabilistic Mass-Mapping with Neural Score Estimation

Benjamin Remy

With : Francois Lanusse, Niall Jeffrey, Jia Liu, J.-L. Starck, Ken Osato and Tim Schrabback





slides at b-remy.github.io/talks/ETHCosmoClub2022

Linear inverse problems

$\boxed{y = \mathbf{A}x + n}$

$\mathbf{A}$ is known and encodes our physical understanding of the problem.
$\Longrightarrow$ When non-invertible or ill-conditioned, the inverse problem is ill-posed with no unique solution $x$
Deconvolution
Inpainting
Denoising
$\boxed{y = \mathbf{A}x + n}$

The Bayesian view of the problem:

$$ p(x | y) \propto p(y | x) \ p(x) $$
  • $p(y | x)$ is the data likelihood, which contains the physics

  • $p(x)$ is the prior knowledge on the solution.


With these concepts in hand, we can estimate for instance the Maximum A Posteriori solution:
$$\hat{x} = \arg\max\limits_x \ \log p(y \ | \ x) + \log p(x)$$ For instance, if $n$ is Gaussian, $\hat x = \arg\max\limits_x \ - \frac{1}{2} \parallel y - \mathbf{A} x \parallel_{\mathbf{\Sigma}}^2 + \log p(x)$

Or estimate from the full posterior p(x|y) with MCMC or Variational Inference methods.

How do you choose the prior ?

Classical examples of signal priors

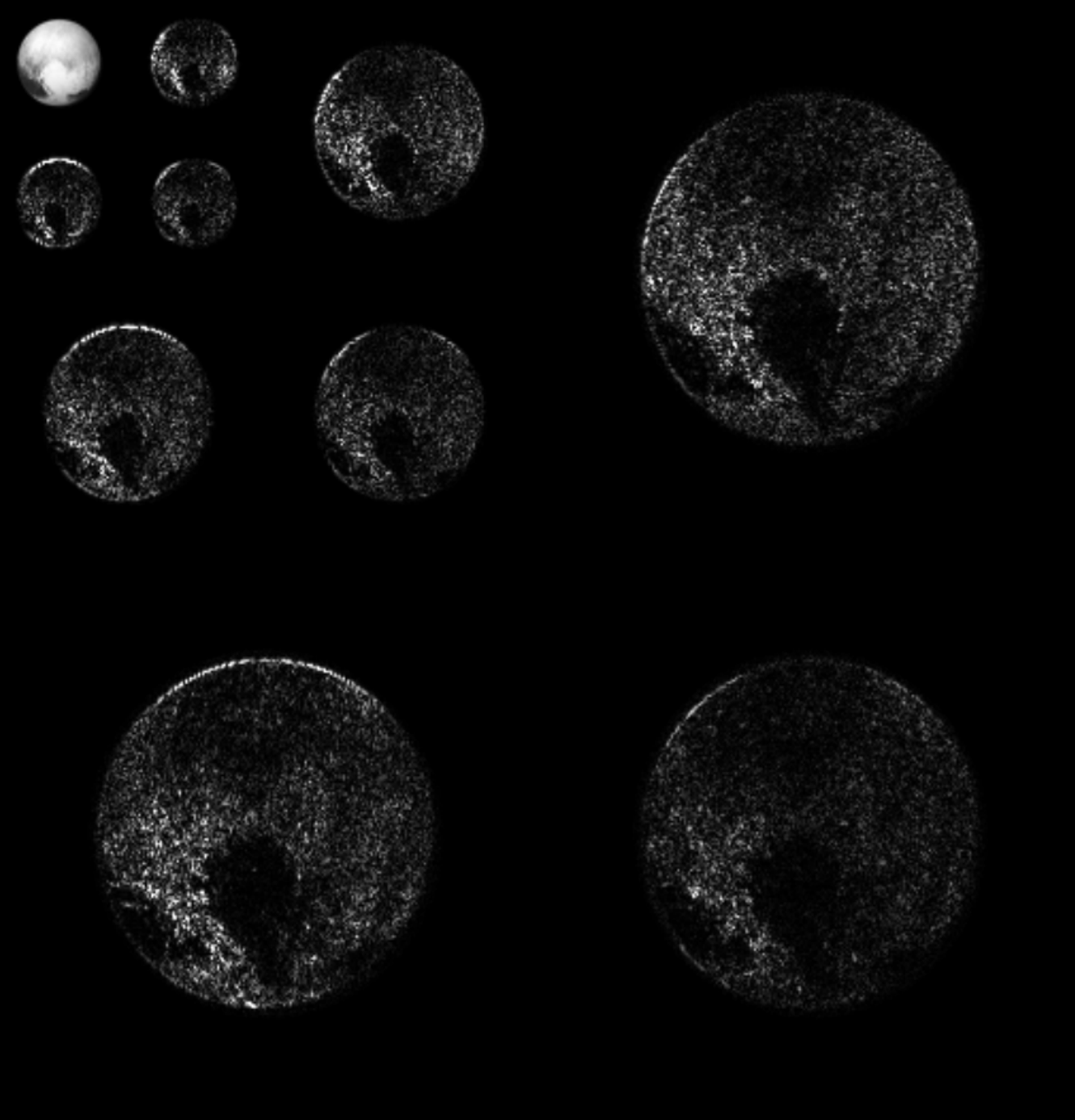

Sparse
$$ \log p(x) = \parallel \mathbf{W} x \parallel_1 $$
Gaussian $$ \log p(x) = x^t \mathbf{\Sigma^{-1}} x $$
Total Variation $$ \log p(x) = \parallel \nabla x \parallel_1 $$

But what about learning the prior
with deep generative models?

The evolution of generative models




  • Deep Belief Network
    (Hinton et al. 2006)

  • Variational AutoEncoder
    (Kingma & Welling 2014)

  • Generative Adversarial Network
    (Goodfellow et al. 2014)

  • Wasserstein GAN
    (Arjovsky et al. 2017)

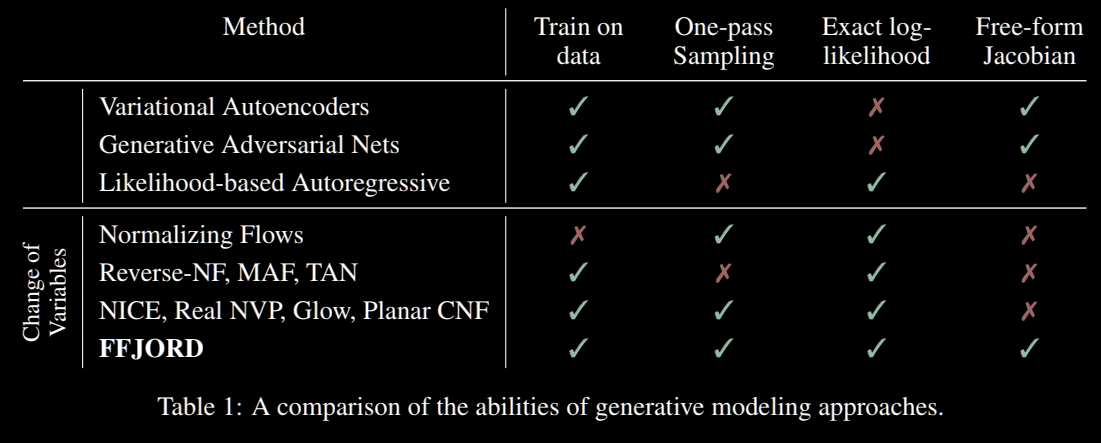

Not all generative models are created equal

Grathwohl et al. 2018


  • GANs and VAEs are very common and successfull but do not fit our purposes.

  • We would want a model with explicit likelihood, which can evaluate $\log p_\theta(x)$.

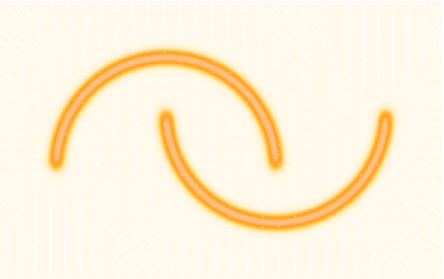

The score is all you need!


  • Whether you are looking for the MAP or sampling with HMC or MALA, you only need access to the score of the posterior: $$\frac{\color{orange} d \color{orange}\log \color{orange}p\color{orange}(\color{orange}x \color{orange}|\color{orange} y\color{orange})}{\color{orange} d \color{orange}x}$$
    • Gradient descent: $x_{t+1} = x_t + \tau \nabla_x \log p(x_t | y) $
    • Langevin algorithm: $x_{t+1} = x_t + \tau \nabla_x \log p(x_t | y) + \sqrt{2\tau} n_t$

Song, et al. (2019)



  • The score of the full posterior is simply: $$\nabla_x \log p(x |y) = \underbrace{\nabla_x \log p(y |x)}_{\mbox{known}} \quad + \quad \underbrace{\nabla_x \log p(x)}_{\mbox{can be learned}}$$ $\Longrightarrow$ all we have to do is model/learn the score of the prior.

Neural Score Estimation by Denoising Score Matching

  • Denoising Score Matching: An optimal Gaussian denoiser learns the score of a given distribution.
    • If $x \sim \mathbb{P}$ is corrupted by additional Gaussian noise $u \in \mathcal{N}(0, \sigma^2)$ to yield $$x^\prime = x + u$$
    • Let's consider a denoiser $r_\theta$ trained under an $\ell_2$ loss: $$\mathcal{L}=\parallel x - r_\theta(x^\prime, \sigma) \parallel_2^2$$
    • The optimal denoiser $r_{\theta^\star}$ verifies: $$\boxed{\boldsymbol{r}_{\theta^\star}(\boldsymbol{x}', \sigma) = \boldsymbol{x}' + \sigma^2 \color{orange}{\nabla_{\boldsymbol{x}} \log p_{\sigma^2}(\boldsymbol{x}')}}$$
$\Bigg($
$\boldsymbol{x}'$
$-$
$\boldsymbol{r}_{\theta^\star}(\boldsymbol{x}', \sigma)$
$\Bigg)~/~\sigma^2=$

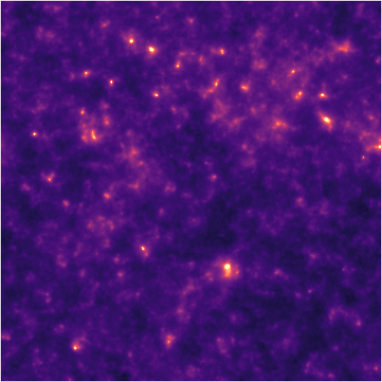

$\color{orange}{\nabla_{\boldsymbol{x}} \log p_{\sigma^2}(\boldsymbol{x}')}$

Training a Neural Score Estimator in practice

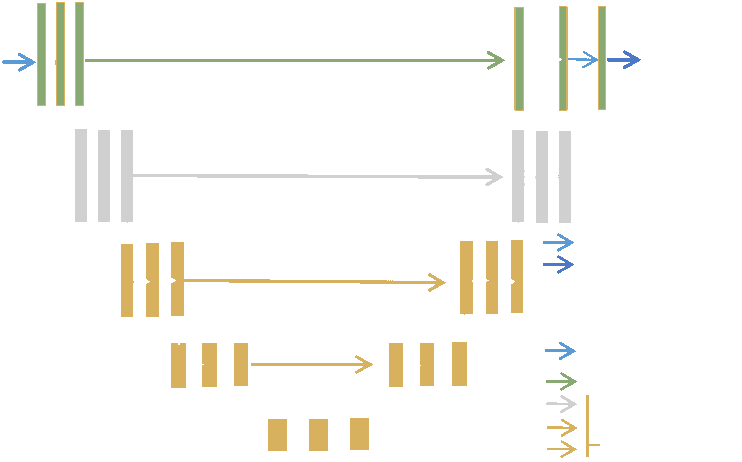

A standard UNet
  • We use a very standard residual UNet, and we adopt a denoising score matching loss: $$\mathcal{L}_{\mathrm{DAE}} = \mathbb{E}_{\boldsymbol{x}^\prime \sim p_{\sigma^2}}\left[ \|\boldsymbol{x} - \boldsymbol{r}_\theta(\boldsymbol{x}', \sigma) \|_2^2 \right]$$

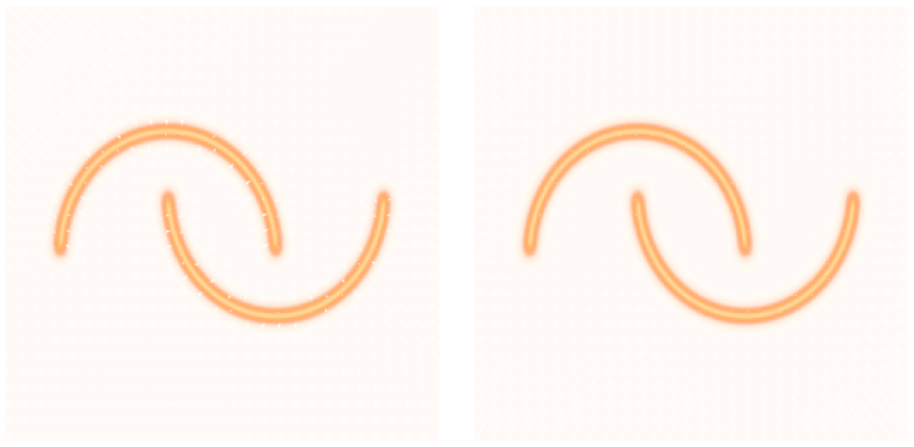

  • Lipschitz regularization to improve robustness:

    Without regularization
    With regularization

Sampling method: Annealed Hamiltonian Monte Carlo

Sampling convergence maps $\kappa \sim p(\kappa|\gamma)$ is very difficult due to the high dimensionality of the space
( $360 \times 360 \approx 10^{5}$ parameters).

Especially for MCMC algorithms because of curse of dimensionality leading to highly correlated chains.

We need to design an efficient sampler. $~~~~\kappa_1, \kappa_2, ..., \kappa_N \sim p(\kappa| \gamma)$


  • Hamiltonial Monte Carlo proposal for a step size $\alpha$: $$\begin{array}{lcl} \boldsymbol{m}_{t+\frac{\alpha}{2}} & = & \boldsymbol{m}_t + \dfrac{\alpha}{2} \color{orange}{\nabla_{\kappa}\log p(\boldsymbol{\kappa}_t|\gamma)} \\ \boldsymbol{\kappa}_{t+\alpha} & = & \boldsymbol{\kappa}_t + \alpha \boldsymbol{\mathrm{M}}^{-1} \boldsymbol{\kappa}_{t+\frac{\alpha}{2}} \\ \boldsymbol{m}_{t+\alpha} & = & \boldsymbol{m}_{t+\frac{\alpha}{2}} + \dfrac{\alpha}{2} \color{orange}{\nabla_\kappa \log p (\boldsymbol{\kappa}_{t+\alpha}|\gamma)} \end{array}$$
  • Annealing: convolve the posterior with a wide gaussian to always remain on high probability density. $$p_\sigma(x) = \int p_{\mathrm{data}}(x')\mathcal{N}(x|x', \sigma^2)dx', ~~~~~~~~\sigma_1 > \sigma_2 > \sigma_3 > \sigma_4 $$

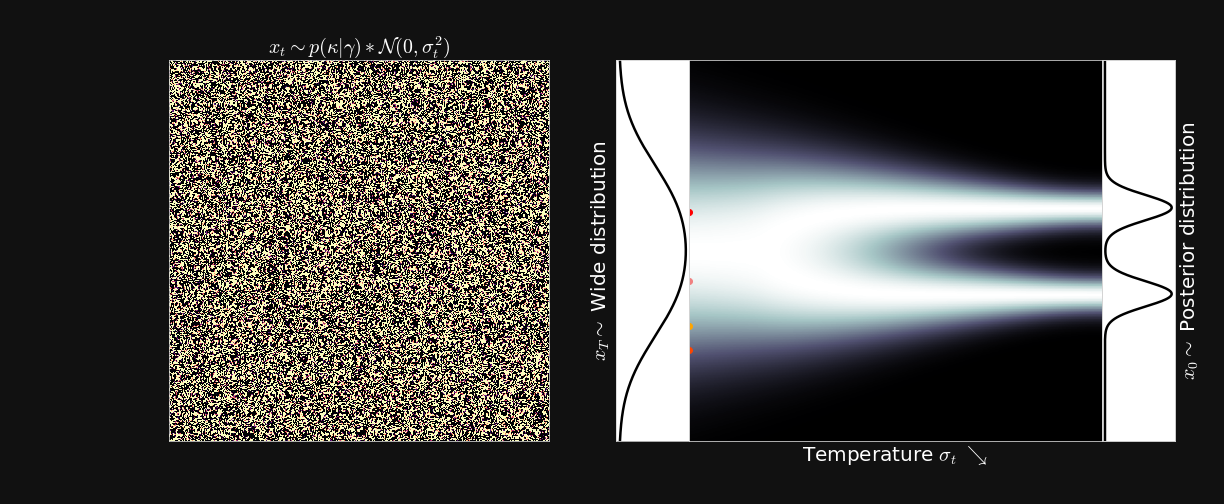

Sampling method: Annealed Hamiltonian Monte Carlo


Target $\sigma_0 \approx 0$
Initialization $\sigma_T$ is high

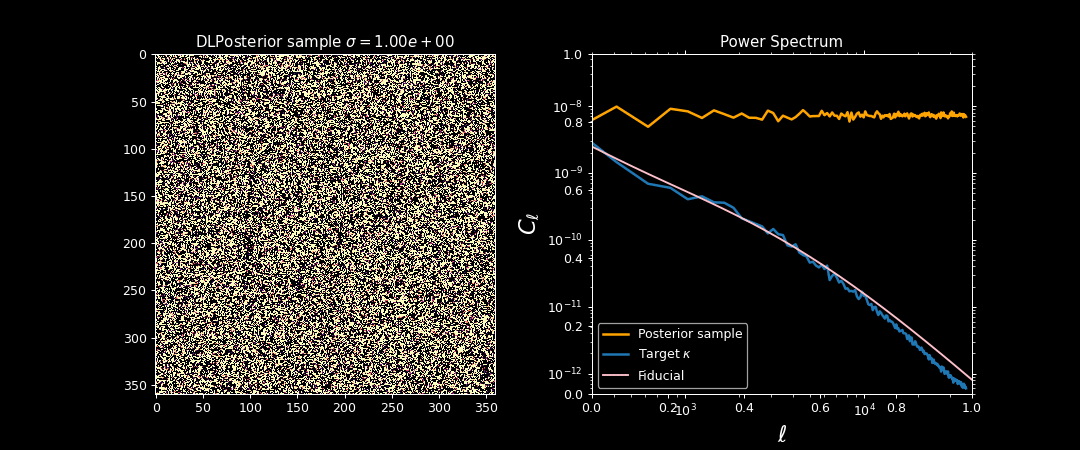

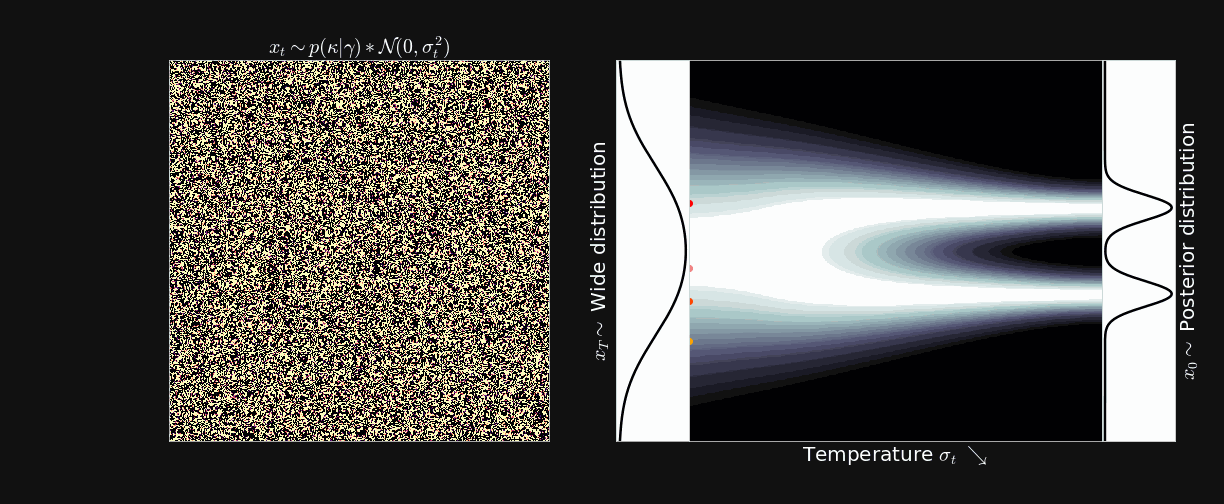

Annealing scheme

Mass-maps

Jeffrey et al. (2021) DES Y3

  • 2pt functions and higher order statistics (3pt functions, Wavelet peak counts, $\ell_1$-norm, scattering transform, neural summaries, ...)

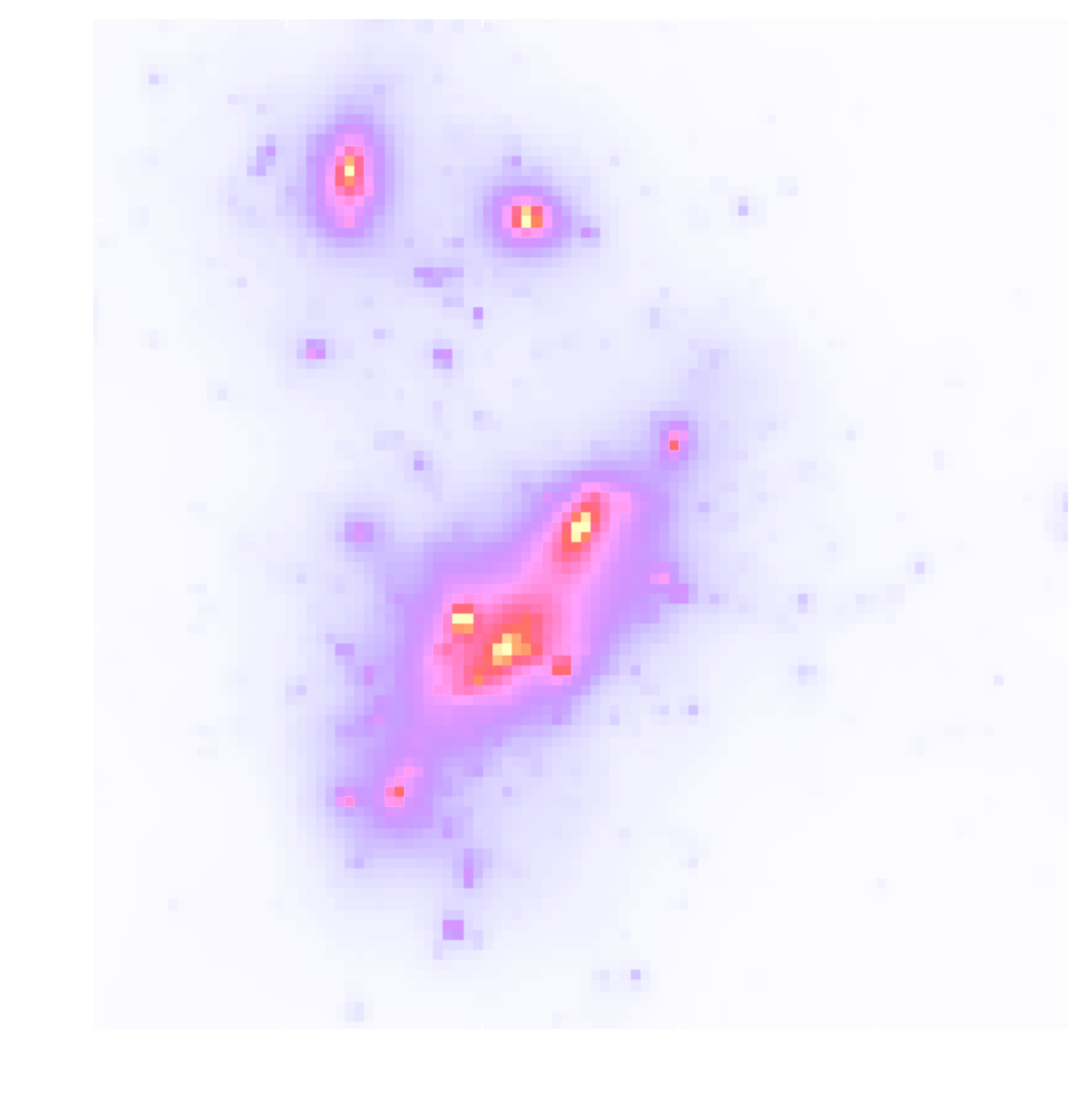

Peel et al. (2021) Abel 520 cluster

  • Search for localized features: localized peaks visible in mass-maps but with no optical counterpart, uncertainty quantification

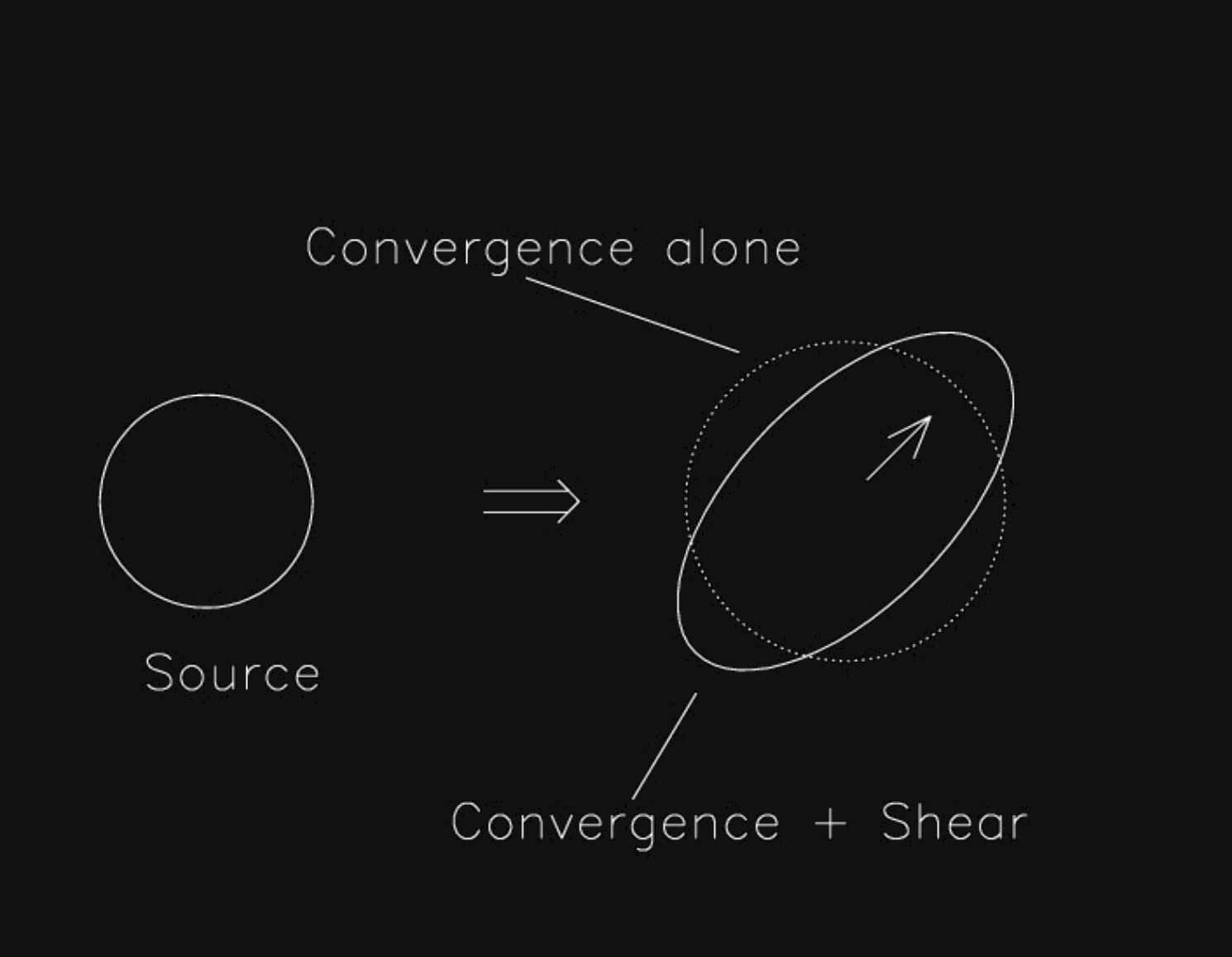

Gravitational lensing

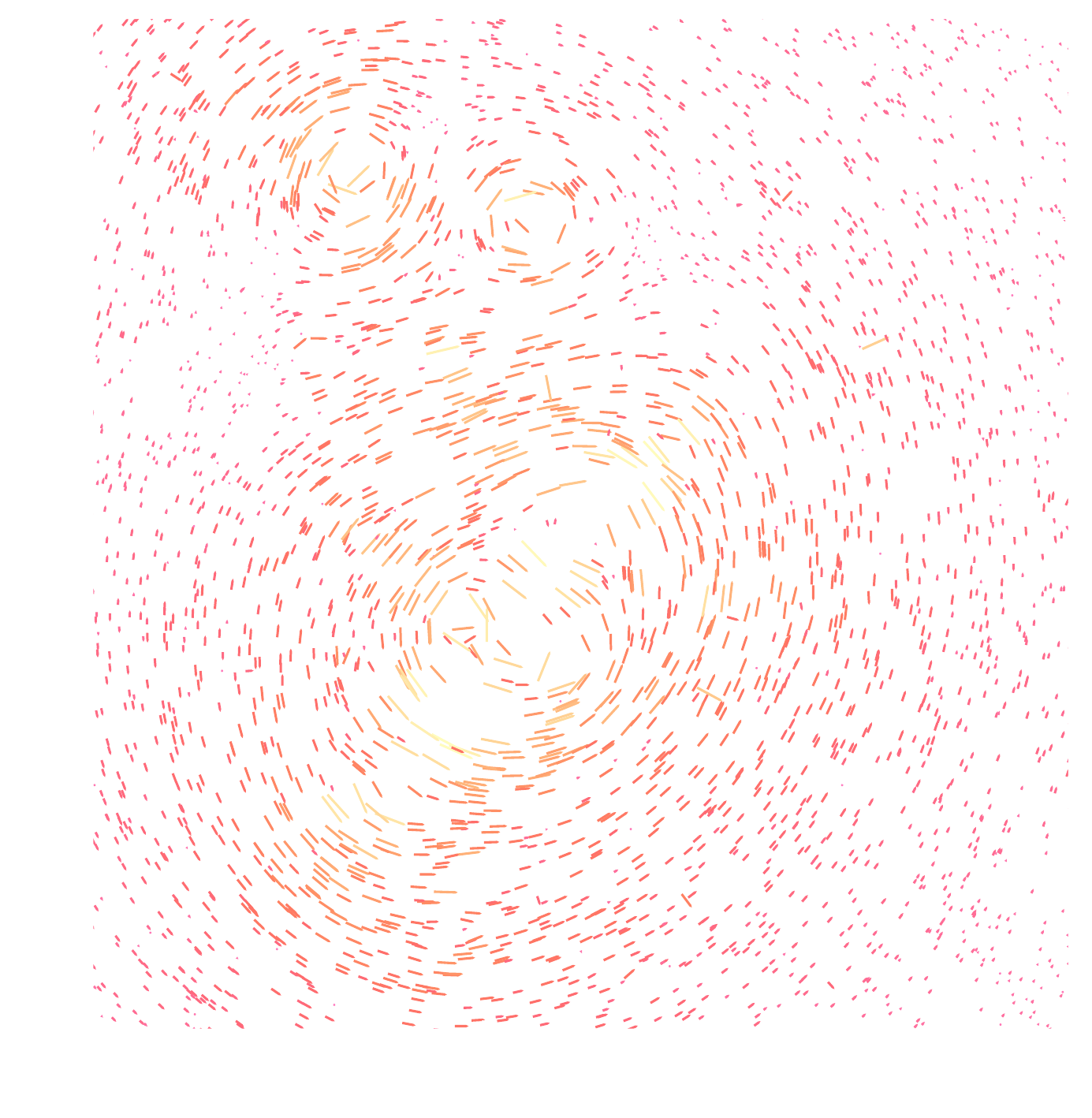

Galaxy shapes as estimators for gravitational shear
$$ e = \gamma + e_i \qquad \mbox{ with } \qquad e_i \sim \mathcal{N}(0, I)$$
  • We are trying the measure the ellipticity $e$ of galaxies as an estimator for the gravitational shear $\gamma$

The Weak Lensing Mass-Mapping as an Inverse Problem

Shear $\gamma$
Convergence $\kappa$
$$\gamma_1 = \frac{1}{2} (\partial_1^2 - \partial_2^2) \ \Psi \quad;\quad \gamma_2 = \partial_1 \partial_2 \ \Psi \quad;\quad \kappa = \frac{1}{2} (\partial_1^2 + \partial_2^2) \ \Psi$$
$$\boxed{\gamma = \mathbf{P} \kappa}$$

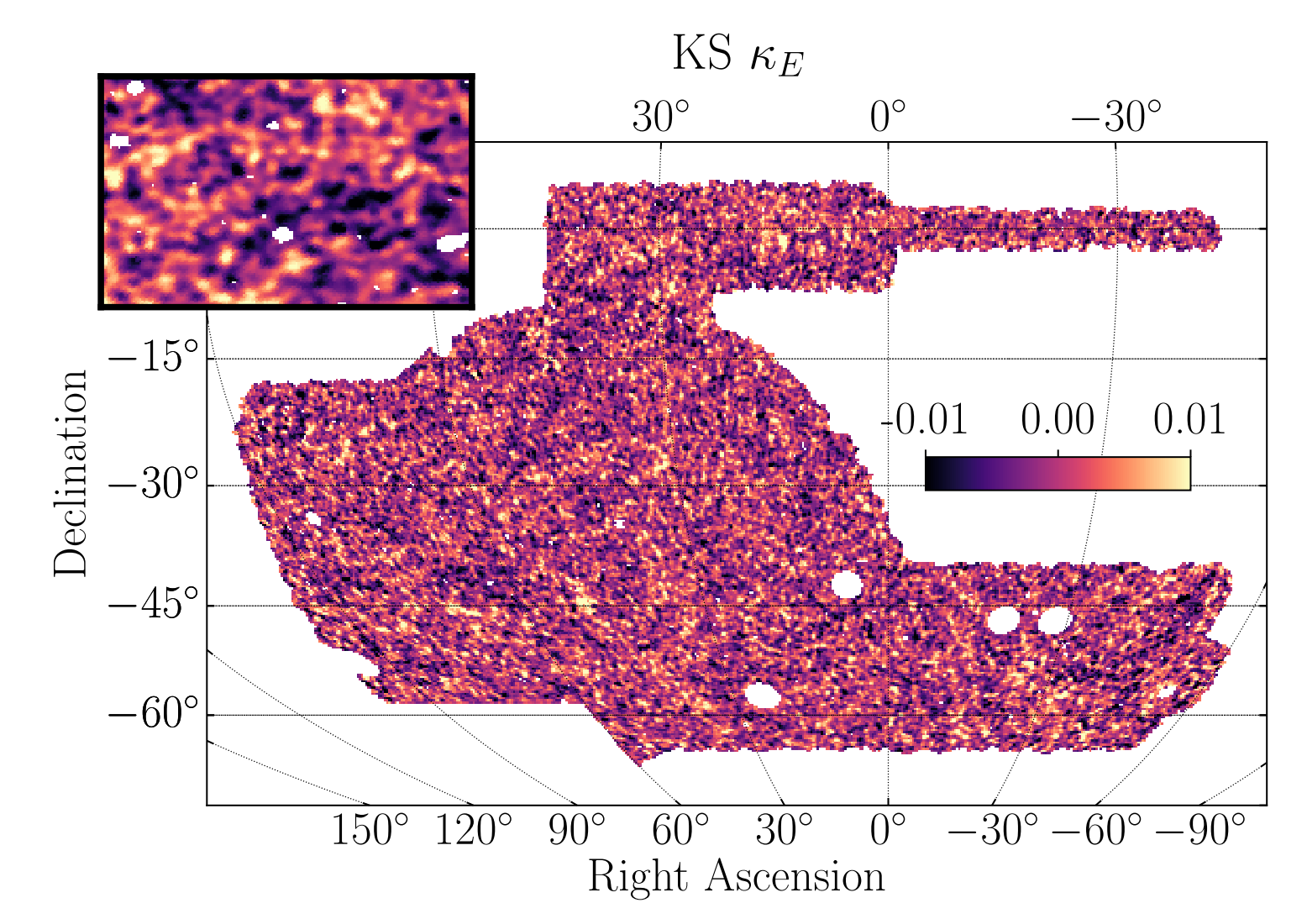

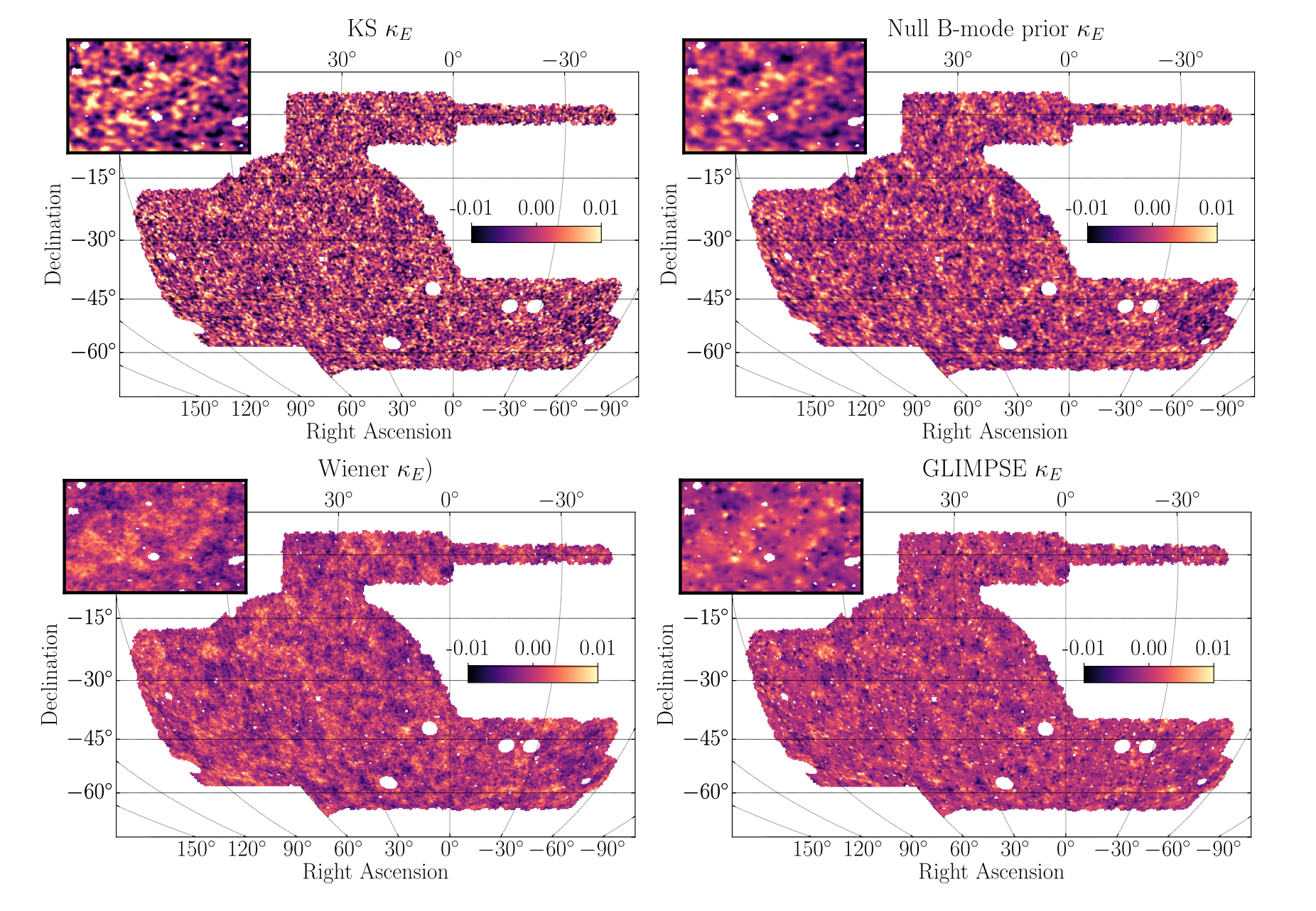

Illustration on the Dark Energy Survey (DES) Y3

Different priors lead to different mass-maps...
Jeffrey, et al. (2021)

State Of The Art of mass-map reconstruction: $\texttt{DeepMass}$

Neural Network based, estimates the posterior mean $\hat{\kappa} = \int \kappa p(\kappa|\gamma)d\kappa$
HST/ACS COSMOS field

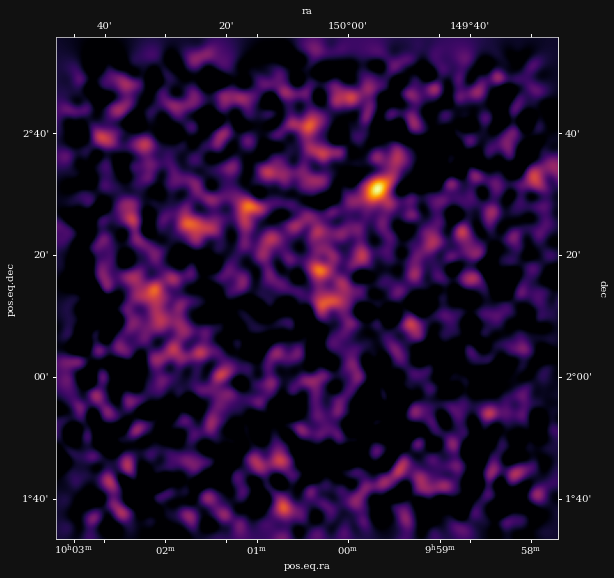

Kaiser-Squires (1993)
DeepMass (Jeffrey et al. 2020)
Limitations:
  • Posterior mean only: no uncertainty on the reconstruction
  • Implicit likelihood: 1) no garantee at inference 2) needs a new training for any change in the lensing catalog (mask, noise)

Our contribution:

We propose to sample the full posterior distribution $p(\kappa|\gamma)$



  • Posterior Mean (DeepMass) ✅


  • Uncertainty Quantifications (posterior samples, moments) ✅


  • Explicit likelihood: train the network only once, data fidelity garanteed at inference ✅

Remy et al. (2022) Posterior mean
Remy et al. (2022) Posterior samples

Bayesian Modeling

$$\boxed{\gamma = \mathbf{P}\kappa + n}$$ $\mathbf{P}$ is known and encodes our physical understanding of the problem
$\Longrightarrow$ Non-invertible (survey mask, shape noise), the inverse problem is ill-posed
with no unique solution $\kappa$


The Bayesian view of the problem:
$$ \boxed{p(\kappa | \gamma) \propto p(\gamma | \kappa) \ p(\kappa)} $$
  • $p(\gamma | \kappa)$ is the data likelihood, which contains the physics

  • $p(\kappa)$ is the prior knowledge on the solution.


$\gamma$
$\kappa$
In this perspective we can provide point estimates: Posterior Mean, Max, Median, etc.
and the full posterior $p(\kappa|\gamma)$ with Markov Chain Monte Carlo or Variational Inference methods

How do you choose the prior ?

Writing down the convergence map log posterior

$$ \log p( \kappa | e) = \underbrace{\log p(e | \kappa)}_{\simeq -\frac{1}{2} \parallel e - P \kappa \parallel_\Sigma^2} + \log p(\kappa) +cst $$
  • The likelihood term is known analytically.
  • There is no close form expression for the full non-Gaussian prior of the convergence.
    However:

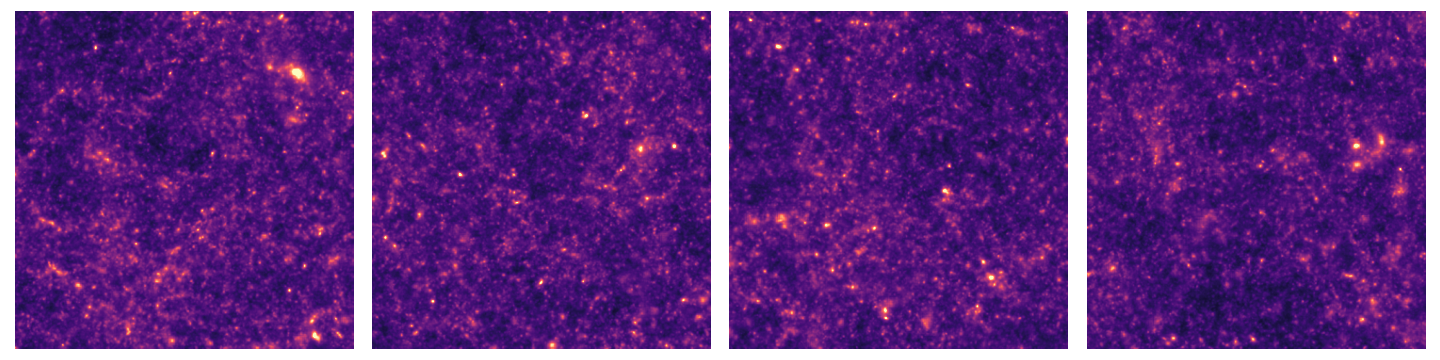

    • We do have access to samples of full implicit prior through simulations: $X = \{x_0, x_1, \ldots, x_n \}$ with $x_i \sim \mathbb{P}$

      $\kappa$TNG (Osato et al. 2021)
$\Longrightarrow$ Our strategy: Learn the prior from simulation, and then sample the full posterior.

Writing down the convergence map log posterior

$$ \log p( \kappa | e) = \underbrace{\log p(e | \kappa)}_{\simeq -\frac{1}{2} \parallel e - P \kappa \parallel_\Sigma^2} + \log p(\kappa) +cst $$

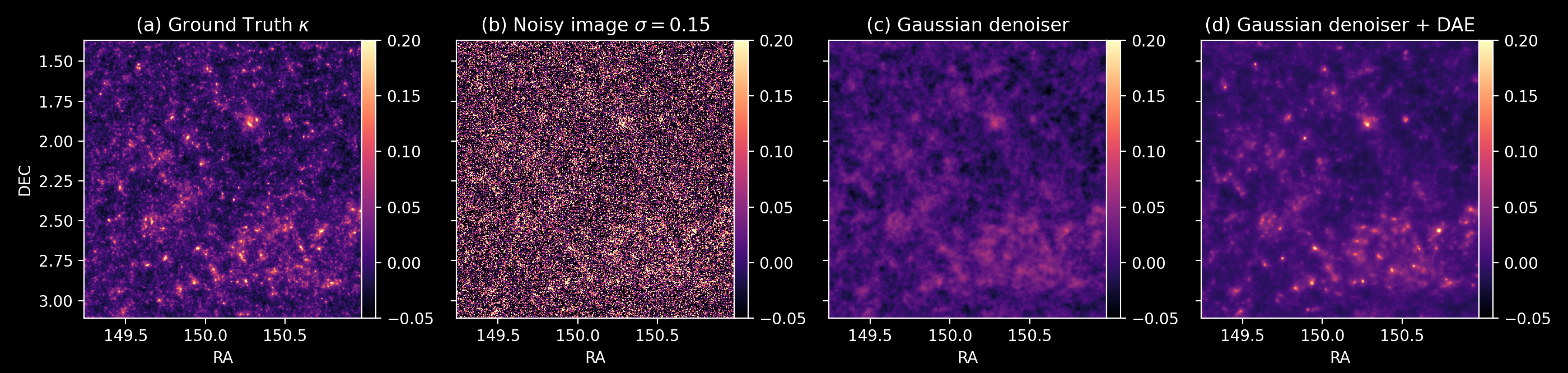

  • We learn a hybriod Denoiser: theoretical Gaussian on large scale, data-driven on small scales using N-body simulations. $$\underbrace{\nabla_{\boldsymbol{\kappa}} \log p(\boldsymbol{\kappa})}_\text{full prior} = \underbrace{\nabla_{\boldsymbol{\kappa}} \log p_{th}(\boldsymbol{\kappa})}_\text{gaussian prior} + \underbrace{\boldsymbol{r}_\theta(\boldsymbol{\kappa}, \nabla_{\boldsymbol{\kappa}} \log p_{th}(\boldsymbol{\kappa}))}_\text{learned residuals}$$

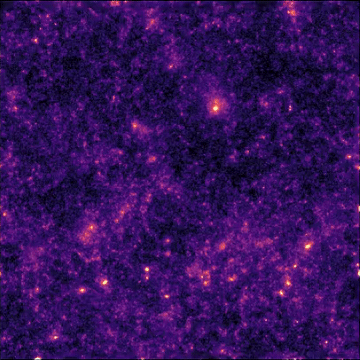

Illustration on $\kappa$-TNG simulations

$$\nabla_\kappa \log p_\sigma(\kappa |\gamma) = \nabla_\kappa \log p_\sigma(\gamma |\kappa) \quad + \quad \color{orange}{\nabla_\kappa \log p_\sigma(\kappa)}$$

Illustration on $\kappa$-TNG simulations


True convergence map

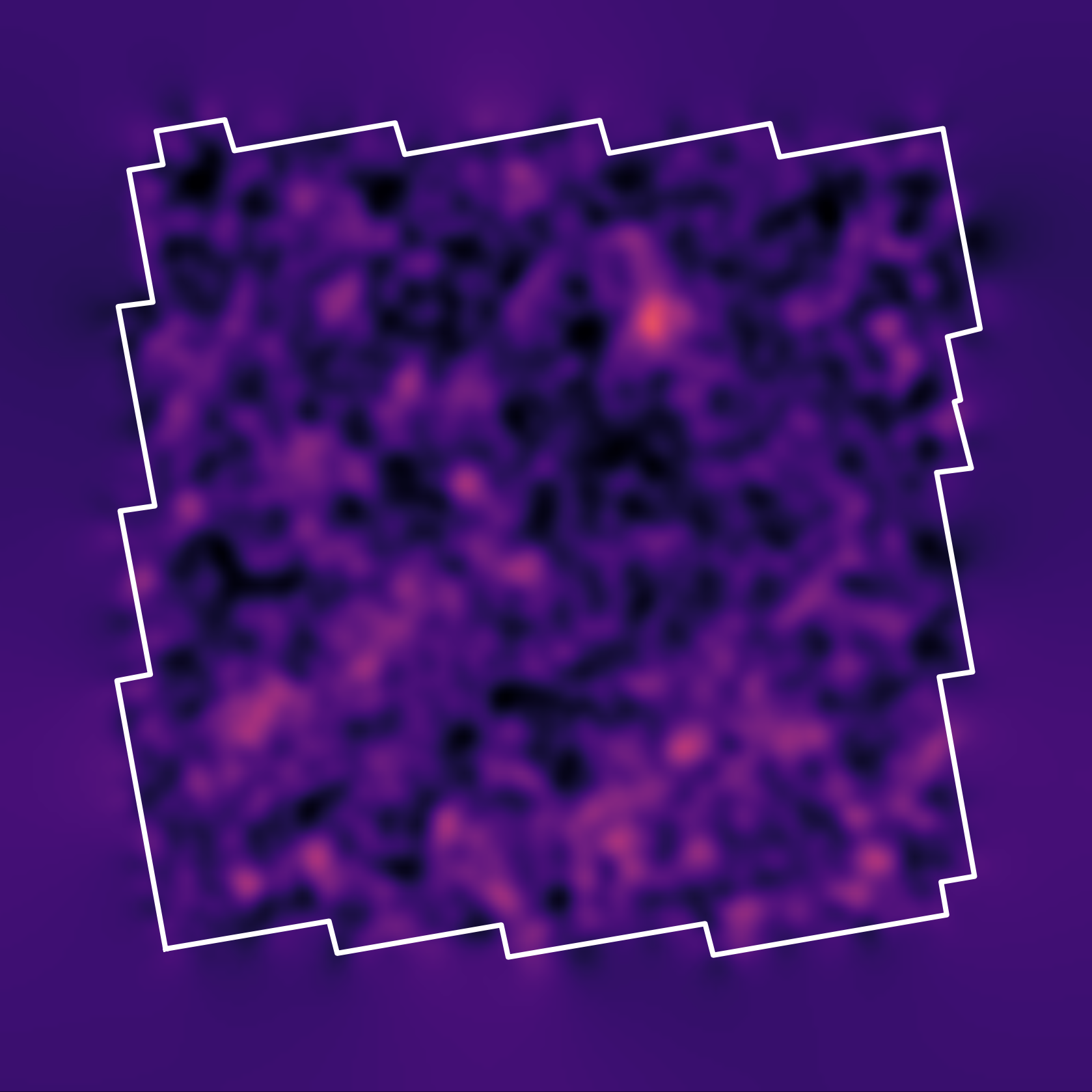

Traditional Kaiser-Squires

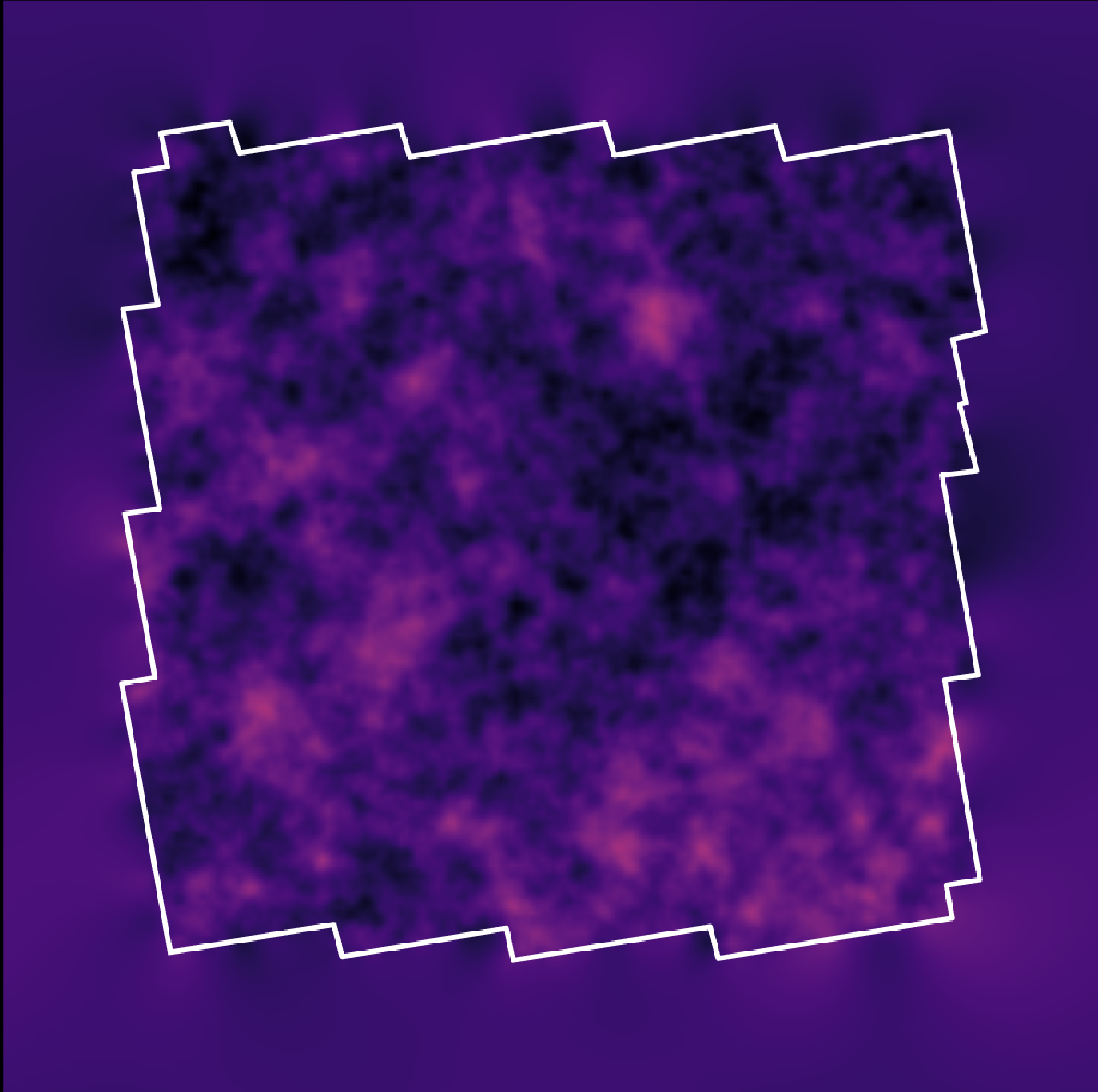

Wiener Filter
Posterior Mean (ours)



Posterior samples

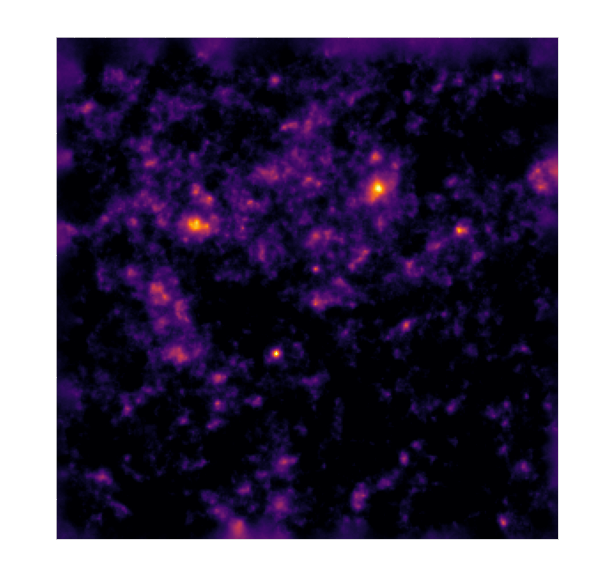

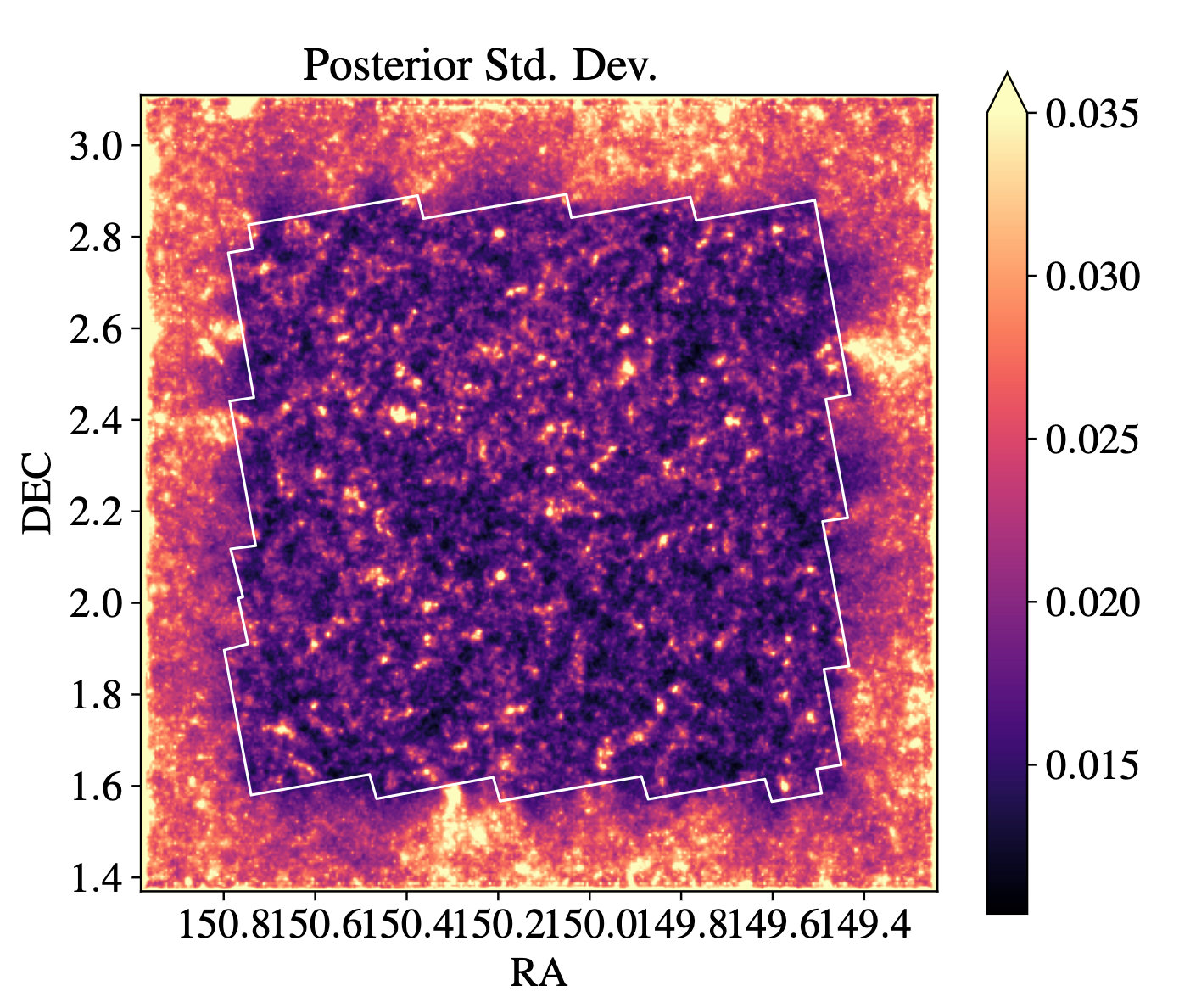

Reconstruction of the HST/ACS COSMOS field

1.637 square degree, 64.2 gal/arcmin$^2$

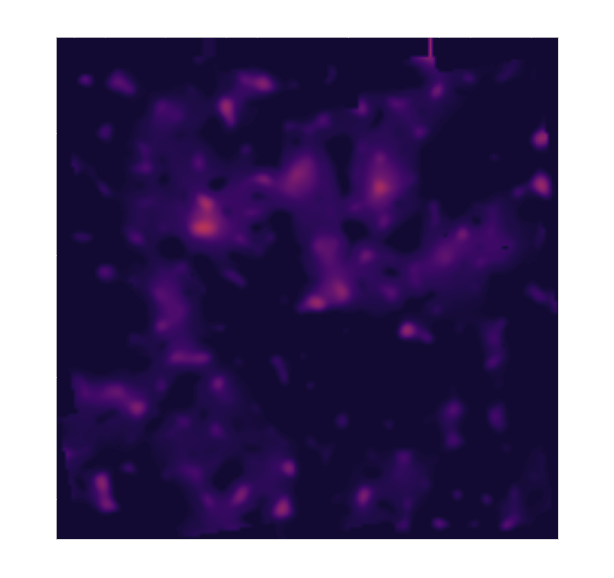

Massey et al. (2007)
Remy et al. (2022) Posterior mean
Remy et al. (2022) Posterior samples
Remy et al. (2022)

Uncertainty quantification in Magnetic Resonance Imaging (MRI)

Ramzi, Remy, Lanusse et al. 2020


$$\boxed{y = \mathbf{M} \mathbf{F} x + n}$$



$\Longrightarrow$ We can see which parts of the image are well constrained by data, and which regions are uncertain.

Takeaways



  • Hybrid physical/deep learning modeling:
    • Deep generative models can be used to provide data driven priors.

    • Explicit likelihood, uses of all of our physical knowledge.
      $\Longrightarrow$ The method can be applied for varying PSF, noise, or even different instruments!

    • Neural Score Estimation is a scalable approach to learn a prior score.

  • We implemented a new class of mass mapping method, providing the full posterior
    $\Longrightarrow$ Find the highest quality convergence map of the COSMOS field online: https://zenodo.org/record/5825654

Thank you!
